SEETEC P173-9HSD-RM 17.3" Rack Mount Broadcast LCD Monitor with 1920×1080 3G-SDI HDMI AV YPbPr
Model：P173-9HSD-RM
Introduction
Screen Size： 17.3"
Resolution： 1920x1080 pixels
Aspect ratio： 16:9
Brightness： 300cd/m2
Input
3G-SDI, HDMI, YPbPr, DVI, Video, Audio(L/R)
Output
3G-SDI, HDMI, YPbPr, Video, Stereo Headphone, Internal Speaker
DM
Shop/2022/3/P173-9HSD-RM-DM-EN1.pdf
Download
正在提交中....
Contact Us
OVERVIEW
FEATURES
SPECIFICATIONS
VIDEO
APPLICATION
ACCESSORIES

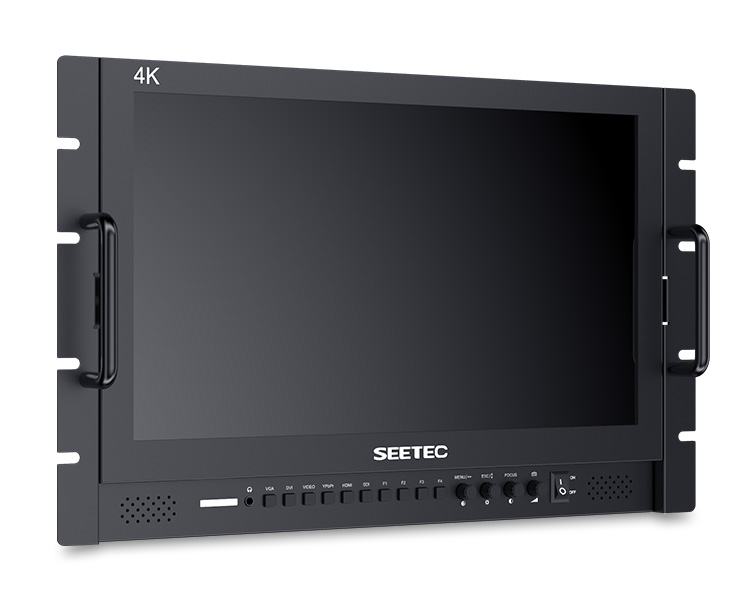

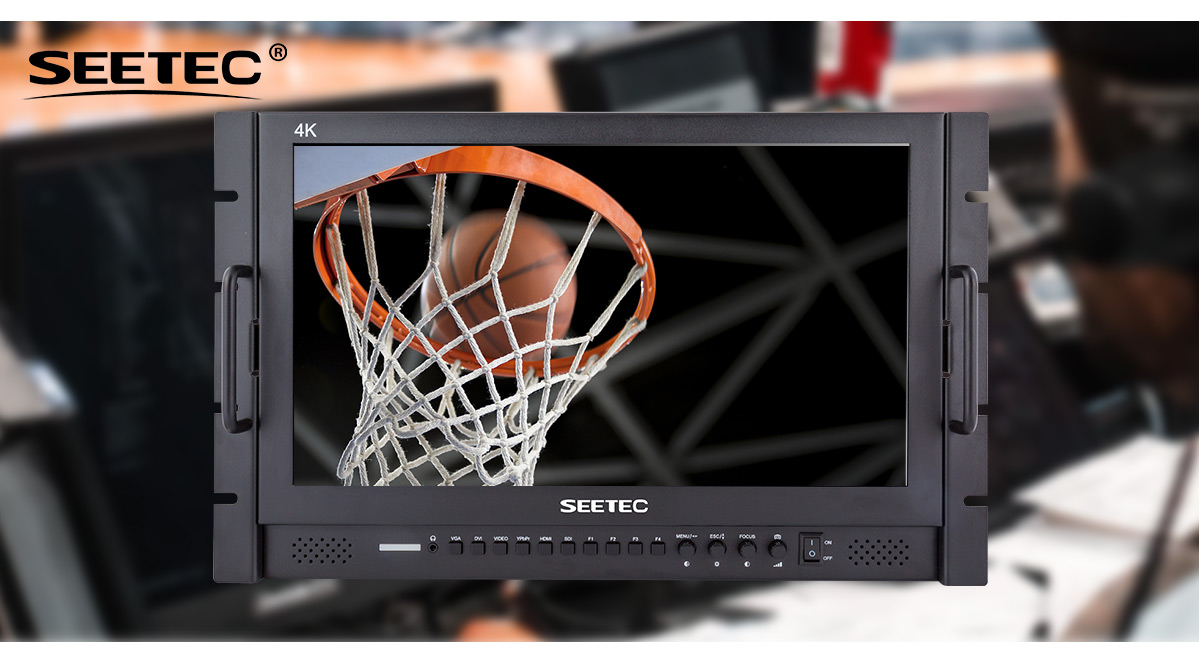

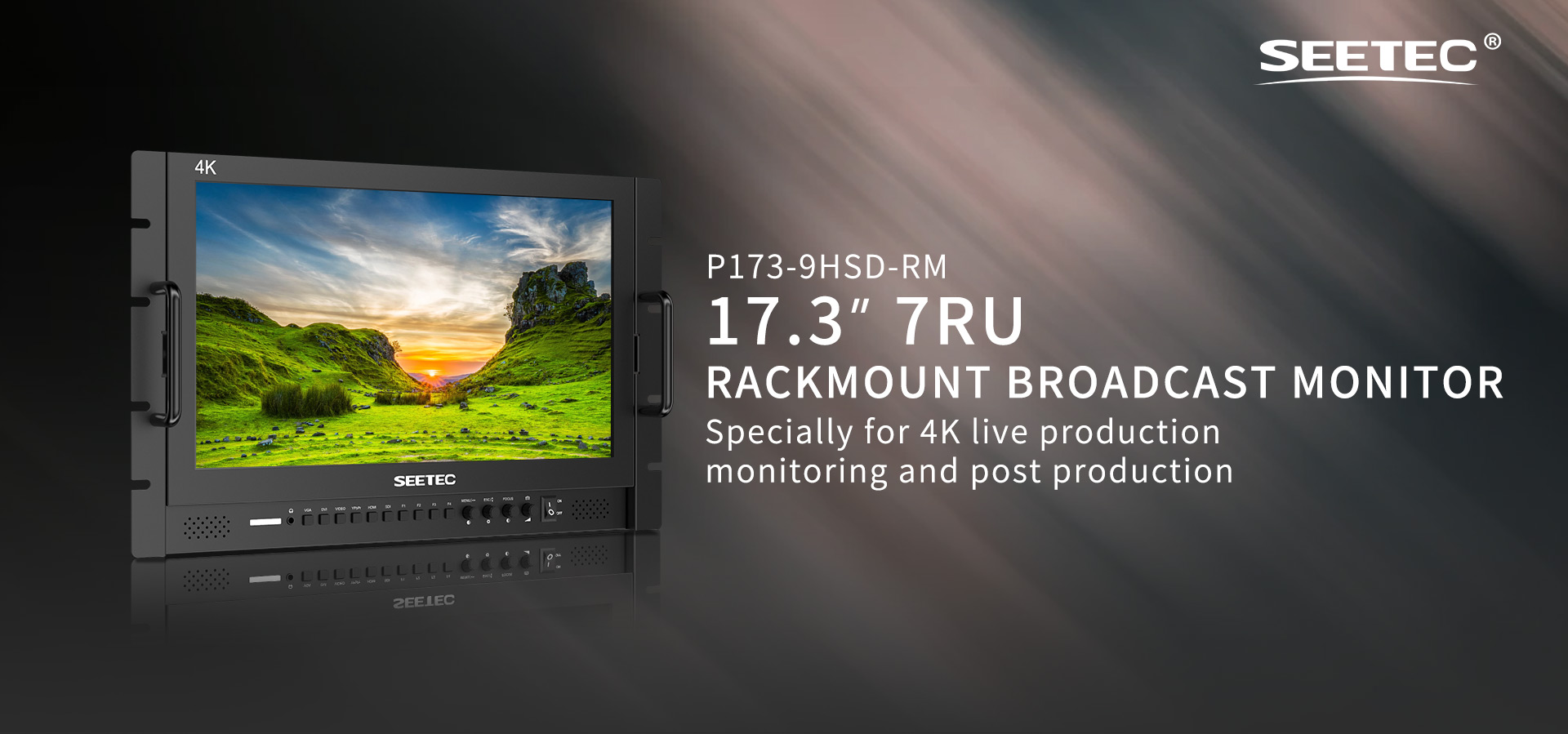

17.3” Full HD 3G-SDI/HDMI Rackmount Broadcast Monitor
SEETEC P173-9HSD-RM is the full HD rack mount broadcast monitor with 3G-SDI, HDMI supports up to 4K@30Hz. Adopts Rec.709 color standard, display vivid images and professional effects. Rugged and durable aluminium housing. Its equipped with VESA standard, can be rack-mounted but also wall-mounted installation. P173-9HSD-RM is the perfect professional monitor for any broadcast facility, mobile broadcast truck or even fly kit.
SEETEC P173-9HSD-RM is the full HD rack mount broadcast monitor with 3G-SDI, HDMI supports up to 4K@30Hz. Adopts Rec.709 color standard, display vivid images and professional effects. Rugged and durable aluminium housing. Its equipped with VESA standard, can be rack-mounted but also wall-mounted installation. P173-9HSD-RM is the perfect professional monitor for any broadcast facility, mobile broadcast truck or even fly kit.

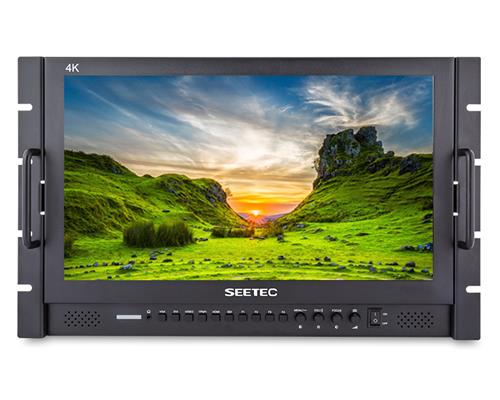

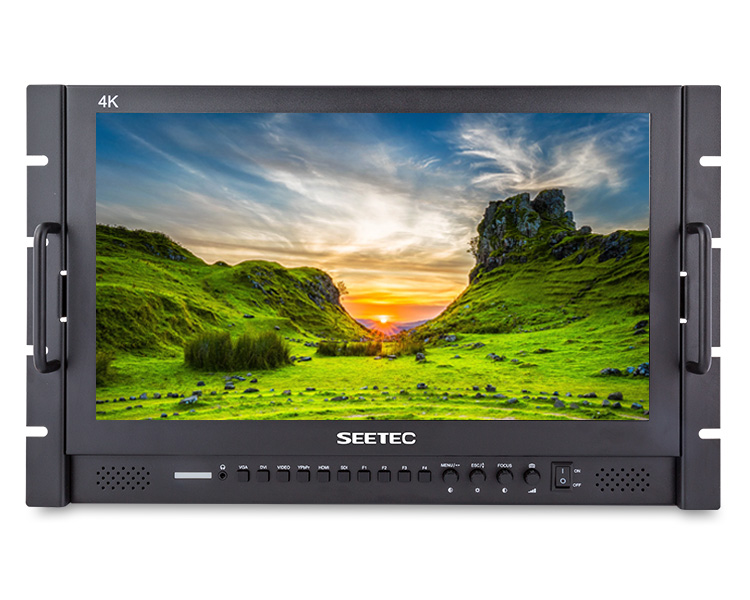

1920X1080 Full HD Panel
With the P173-9HSD-RM's 17.3-inch 1920×1080 Full HD panel what you see is truly viewing angles outputting crisp, clear shots on the field, which means less time in the editing room. The P173-9HSD-RM's Full HD Panel is the tool of choice for high quality color reproduction.
With the P173-9HSD-RM's 17.3-inch 1920×1080 Full HD panel what you see is truly viewing angles outputting crisp, clear shots on the field, which means less time in the editing room. The P173-9HSD-RM's Full HD Panel is the tool of choice for high quality color reproduction.

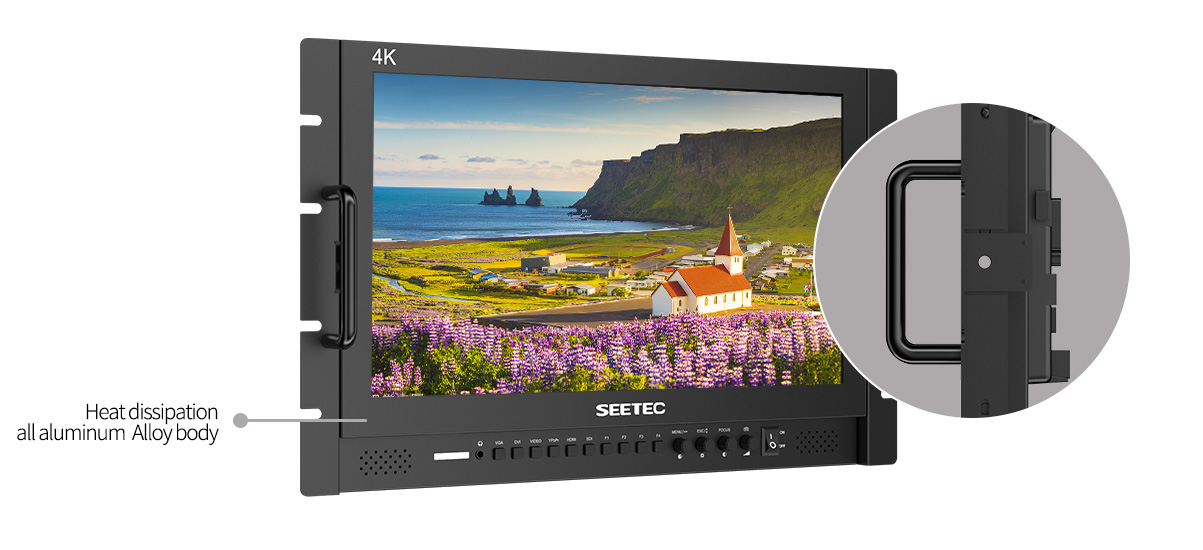

Rugged and Durable, Easy to Dissipate Heat
The full aluminum alloy frame not only make the device more solid and durable, but also solve the problem of heat dissipation. The equipped cast iron hand grips, easy to hold.

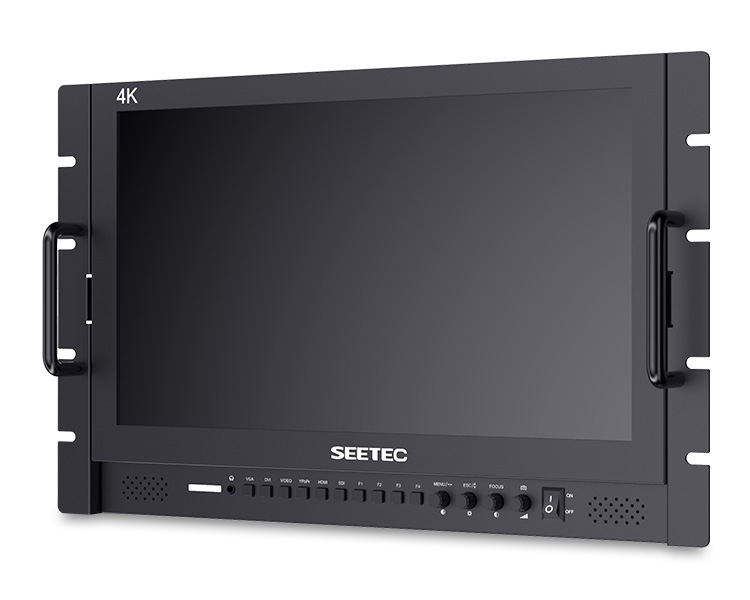

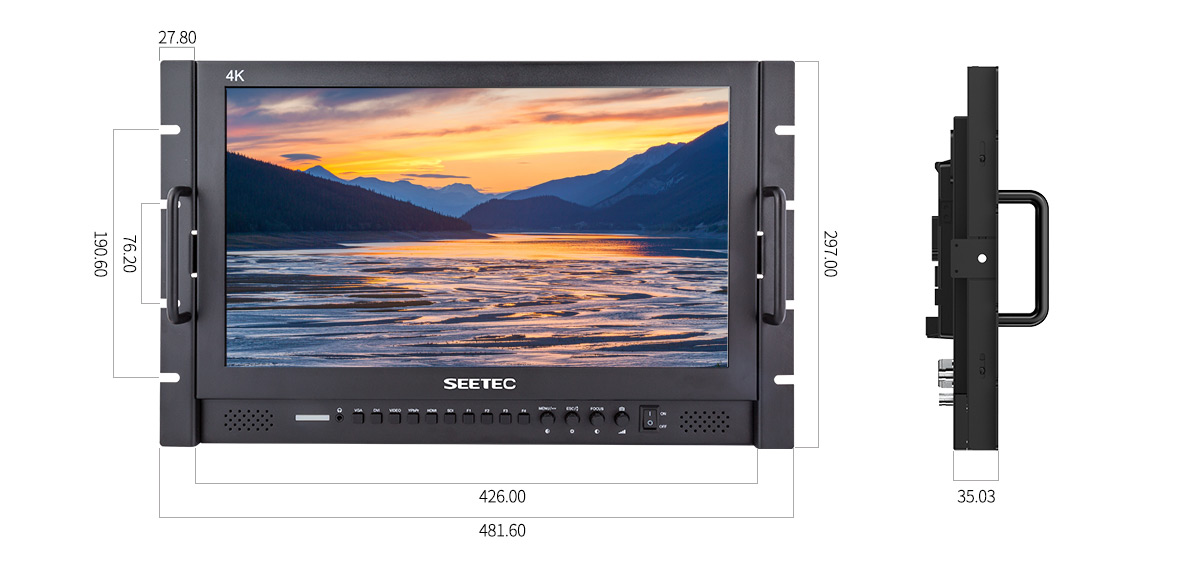

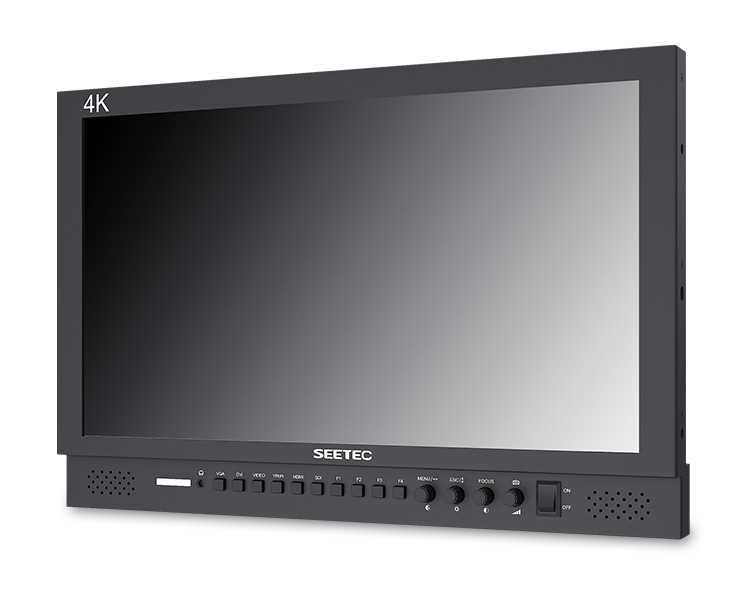

Extremely Thin Design, Suitable Size
P173-9HSD-RM with extremely body, its 7RU design allows it to be easily integrated into a studio or post-production rackmount setup.
Accurate Color Reproduction
Use Rec.709 color standard
SEETEC monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals.
Use Rec.709 color standard
SEETEC monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals.

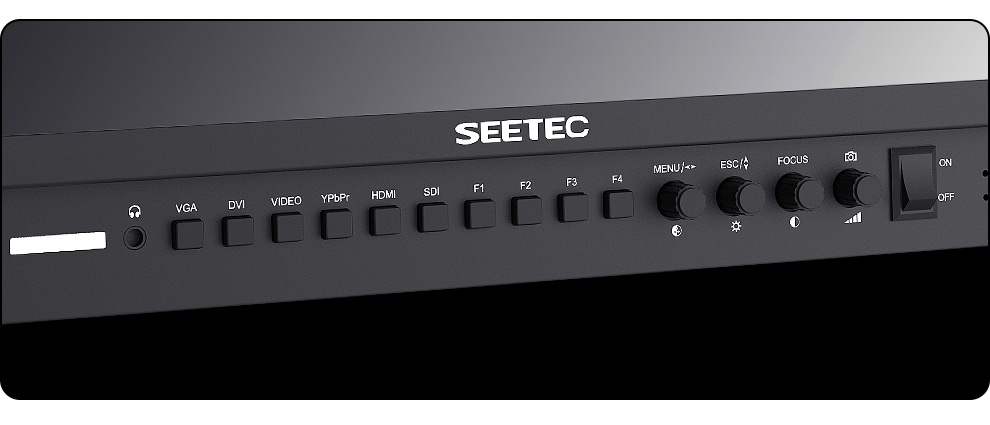

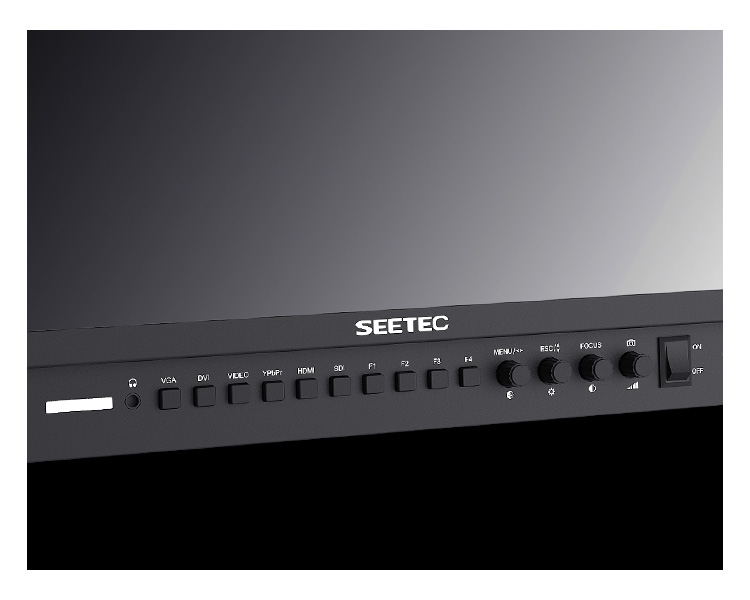

Innovation OSD Operation
P173-9HSD-RM not only set up four "F key" for peaking focus assist, check field, camera mode function, pixel to pixel, Center Marker, Safe Marker, Image Flip and so on, reserves the knob for professional users. Double functions and knob type coding switch are SEETEC's exclusive technology feature, which will bring you more convenient and rapid operate feeling.
P173-9HSD-RM not only set up four "F key" for peaking focus assist, check field, camera mode function, pixel to pixel, Center Marker, Safe Marker, Image Flip and so on, reserves the knob for professional users. Double functions and knob type coding switch are SEETEC's exclusive technology feature, which will bring you more convenient and rapid operate feeling.
Professional Monitoring
P173-9HSD-RM is an incredibly high quality monitor that's versatile enough to be used from the broadcast facility, mobile live production or on set for feature film production! The monitor comes with 3G/HD/SD-SDI, HDMI, YPbPr, Audio, Video, DVI inputs. Multiple input formats to meet all HD, SD, analogue video signal input and display demand professional functions set.
P173-9HSD-RM is an incredibly high quality monitor that's versatile enough to be used from the broadcast facility, mobile live production or on set for feature film production! The monitor comes with 3G/HD/SD-SDI, HDMI, YPbPr, Audio, Video, DVI inputs. Multiple input formats to meet all HD, SD, analogue video signal input and display demand professional functions set.

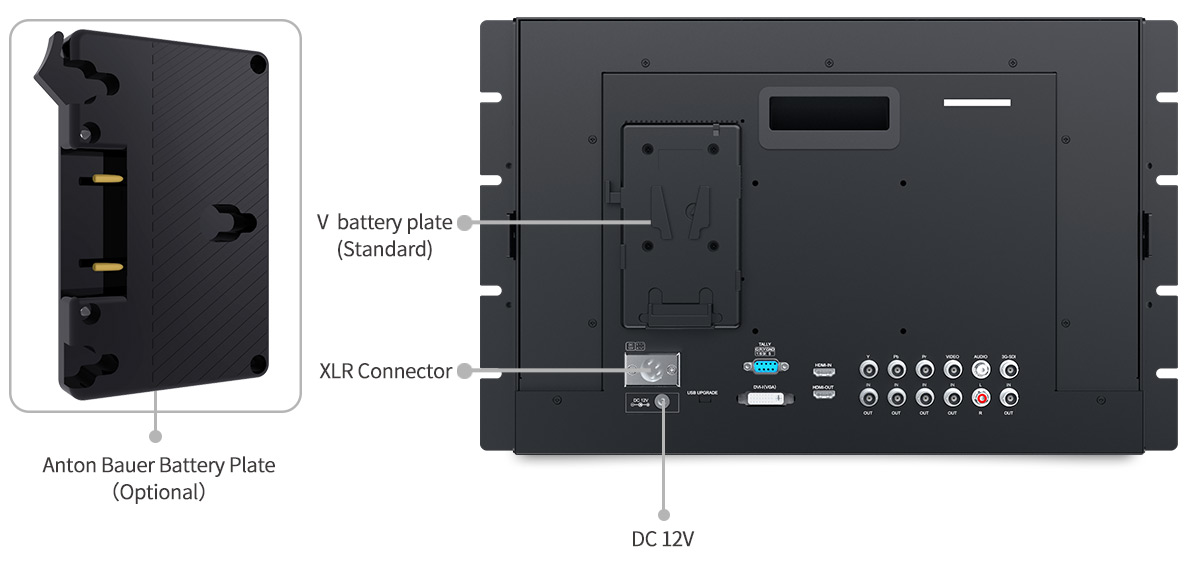

Hassle-free Power
Monitoring anywhere you need it！
We've made it easy to power the monitor. P173-9HSD-RM can be powered in two ways: with an DC adapter or lithium batteries. The P173-9HSD-RM has a flexible battery system that supports V battery plate (standard), Anton Bauer battery plate of your choice.
Monitoring anywhere you need it！
We've made it easy to power the monitor. P173-9HSD-RM can be powered in two ways: with an DC adapter or lithium batteries. The P173-9HSD-RM has a flexible battery system that supports V battery plate (standard), Anton Bauer battery plate of your choice.

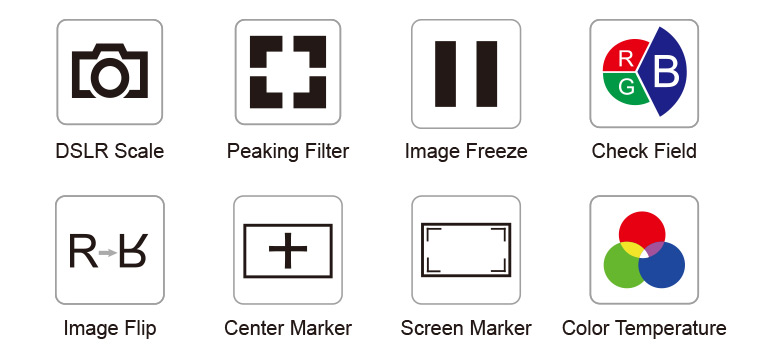

Professional Auxiliary Shooting Functions
SEETEC monitor is ideal for high end broadcast monitoring because they feature high quality focus assist function, also includes check field, image freeze, image flip, center marker, safe frame, color temperature adjust, assist users to accurately monitor when shooting, making and playing movies/videos.
SEETEC monitor is ideal for high end broadcast monitoring because they feature high quality focus assist function, also includes check field, image freeze, image flip, center marker, safe frame, color temperature adjust, assist users to accurately monitor when shooting, making and playing movies/videos.

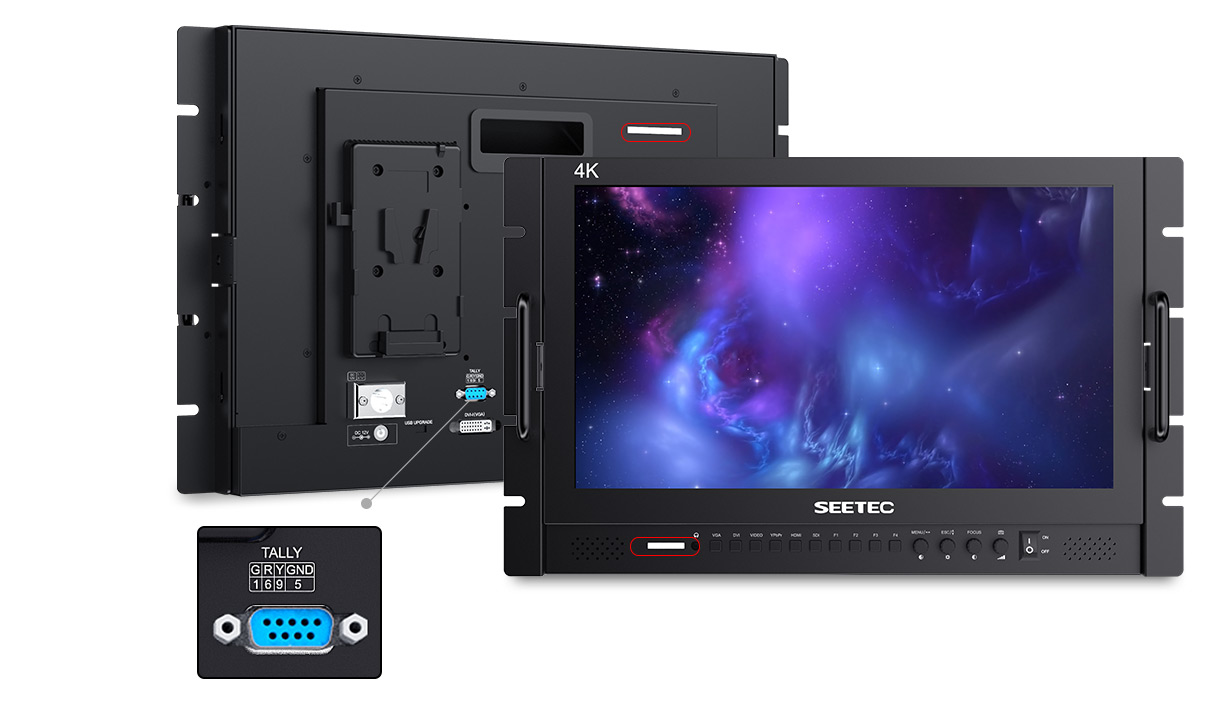

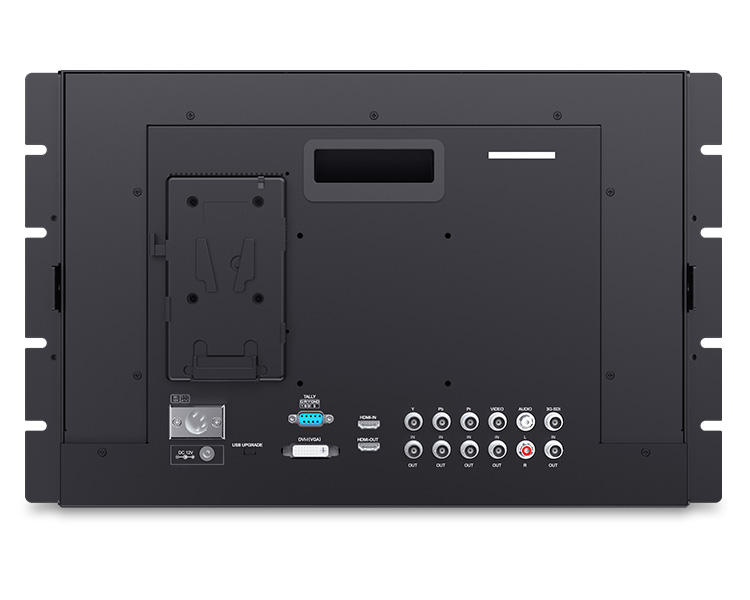

3 Color Tally Light
Both front and rear side
There is front and rear TALLY lights for with 3 colors display (Red, Green, Yellow), and controlled via DB-9 ports on the rear panel.
Both front and rear side
There is front and rear TALLY lights for with 3 colors display (Red, Green, Yellow), and controlled via DB-9 ports on the rear panel.
* 17.3-inch 1920x1080 full HD large screen
* Rugged aluminium housing, durable
* Flexible and intuitive button operation, easy to use
* 7RU Rackmount design, meet multiple installations
* Built-in LED tally indicators (Red, Green, Yellow)
* Peaking focus assist, check field, camera mode, etc. auxiliary functions, assist users to accurately monitor when shooting, making and playing movies/ videos.
* Multiple interfaces, meet different needs (4K HDMI, 3G-SDI, Ypbpr, Video, DVI)
* Power using included 12-volt supply or use standard 4-pin XLR
* Stereo Earphone output, built-in speaker
* Rugged aluminium housing, durable
* Flexible and intuitive button operation, easy to use
* 7RU Rackmount design, meet multiple installations
* Built-in LED tally indicators (Red, Green, Yellow)
* Peaking focus assist, check field, camera mode, etc. auxiliary functions, assist users to accurately monitor when shooting, making and playing movies/ videos.
* Multiple interfaces, meet different needs (4K HDMI, 3G-SDI, Ypbpr, Video, DVI)
* Power using included 12-volt supply or use standard 4-pin XLR
* Stereo Earphone output, built-in speaker
Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. It's shows Red highlight over parts of the monochrome image in focus.
Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.
Camera Mode Function
It will be full screen under camera mode.
Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling. This feature is essential for capturing optimum detail.

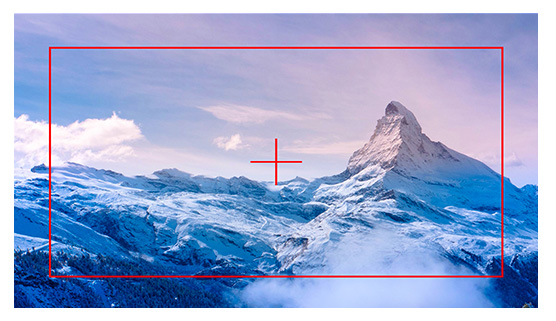

Center Marker & Safe Marker

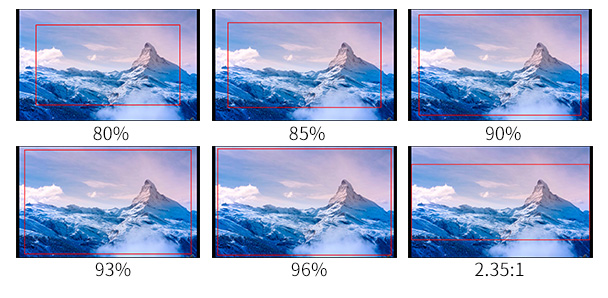

Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%,2.35:1)
Image Flip
The Horizontal, Vertical and Hor&Ver of the image around flip.
Display Spec.
| Model | P173-9HSD-RM |
| Screen Size | 17.3" |
| Color Depth | 16.7M |
| Resolution | 1920×1080 pixels |
| Pixel Pitch | 0.1989(H)×0.1989(V) mm |
| Aspect Ratio | 16:9 |
| Brightness | 300cd/m² |
| Contrast Ratio | 700:1 |
| Backlight | LED |
| Viewing Angle | 89°/89°(L/R) 89°/89°(U/D) |

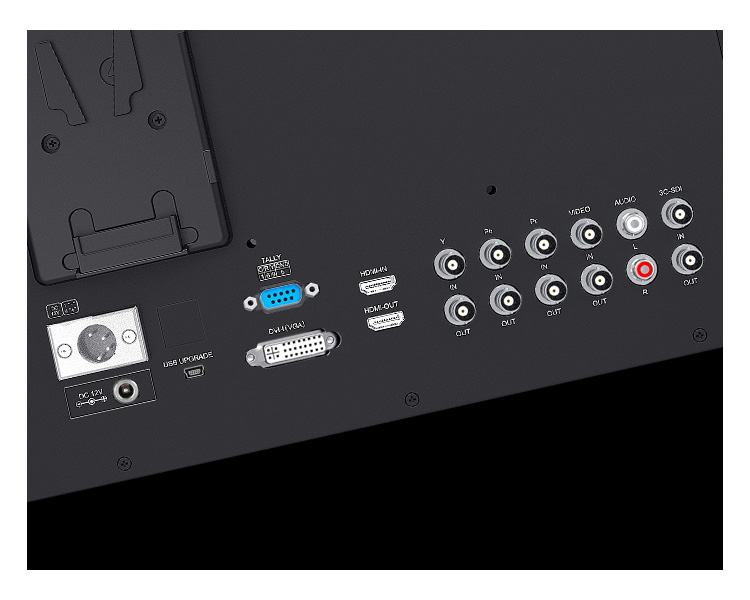

Input
| 1 X BNC | 3G-SDI |
| 1 X HDMI | HDMI |
| 3 X BNC | YPbPr |
| 1 X DVI-I | DVI-I |
| 1 X BNC | Video |
| 2 X RCA | Audio(L/R) |
Output
| 1 X BNC | 3G-SDI |
| 1 X HDMI | HDMI |
| 3 X BNC | YPbPr |
| 1 X BNC | Video |
Audio
| Audio | Stereo Headphone, Speaker |
SDI Support Format
| 480i/576i |
| 720p(60/59.94/50/30/29/25/24/23.98) |
| 1080i(60/59.94/50) |
| 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |

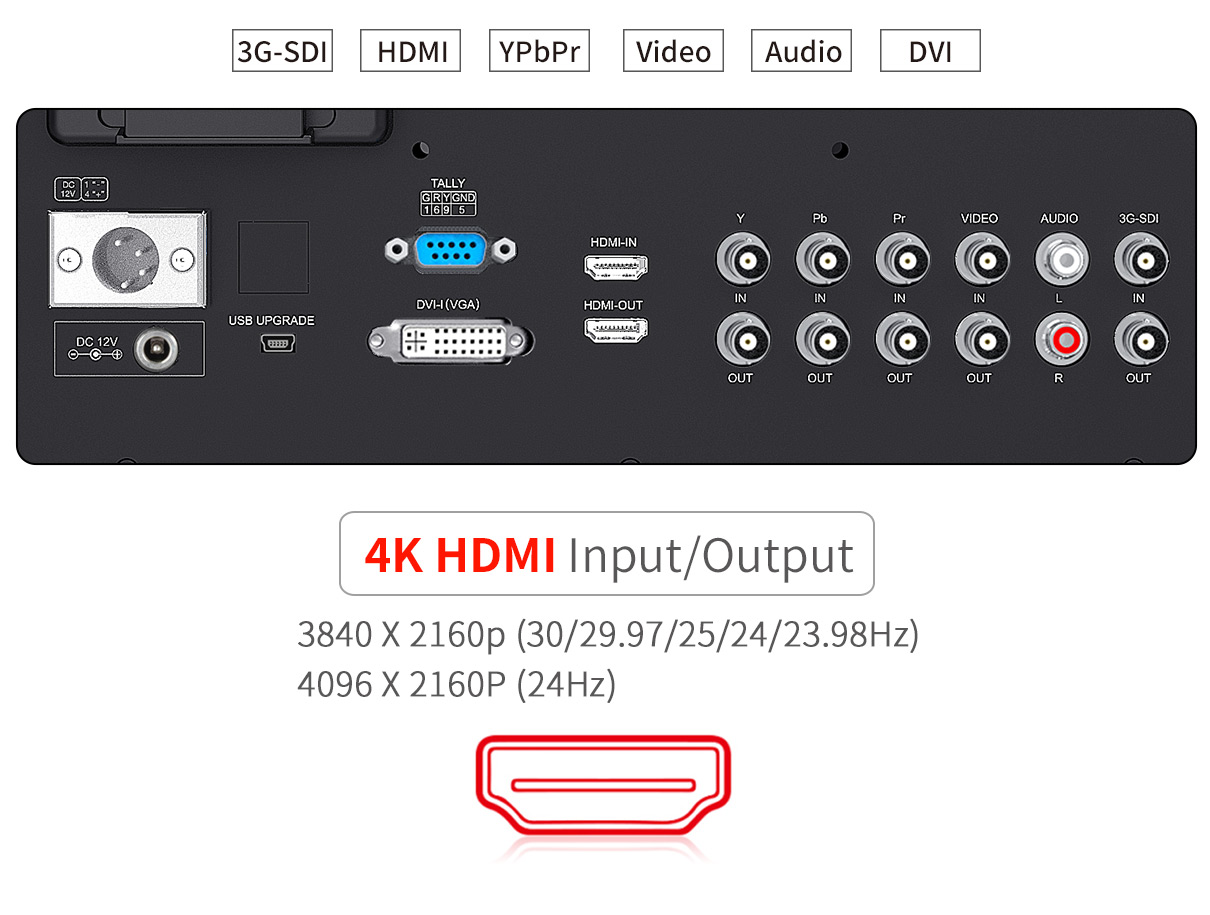

HDMI Support Format
| 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
| 4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz) |
General
| Input Voltage | DC9～24V |
| Power Consumption | ≤26W |
| Working Temperature | -10°C~50°C |
| Storage Temperature | -20°C~60°C |
| Unit Size | 481.6L×297H×35D mm |
| Unit Weight | 3.4kg |
| Outer Carton Qty | 2 |
| Outer Carton Size | 535*350*425 (mm) |
| Gross Weight | 9.795kgs |
Advanced Features
| * Peaking Focus Assist(Red highlight over parts of the monochrome image in focus) |
| * Center Marker |
| * Screen Marker (80%,85%,90%,93%,96%,2.35:1) |
| * Image Freeze |
| * Image Flip (H, V, H/V) |
| * Camera Mode |
| * Pixel-to-Pixel |
| * Check Field (Red,Green,Blue,Mono) |
| * Zoom All (Nonsupport in 4K input) |
| * U/D & L/R Zoom (Nonsupport in 4K input) |
| * Aspect Ratio (Nonsupport in 4K input) |
| * Custom Color Temperature |
| * Built-in LED tally indicators |

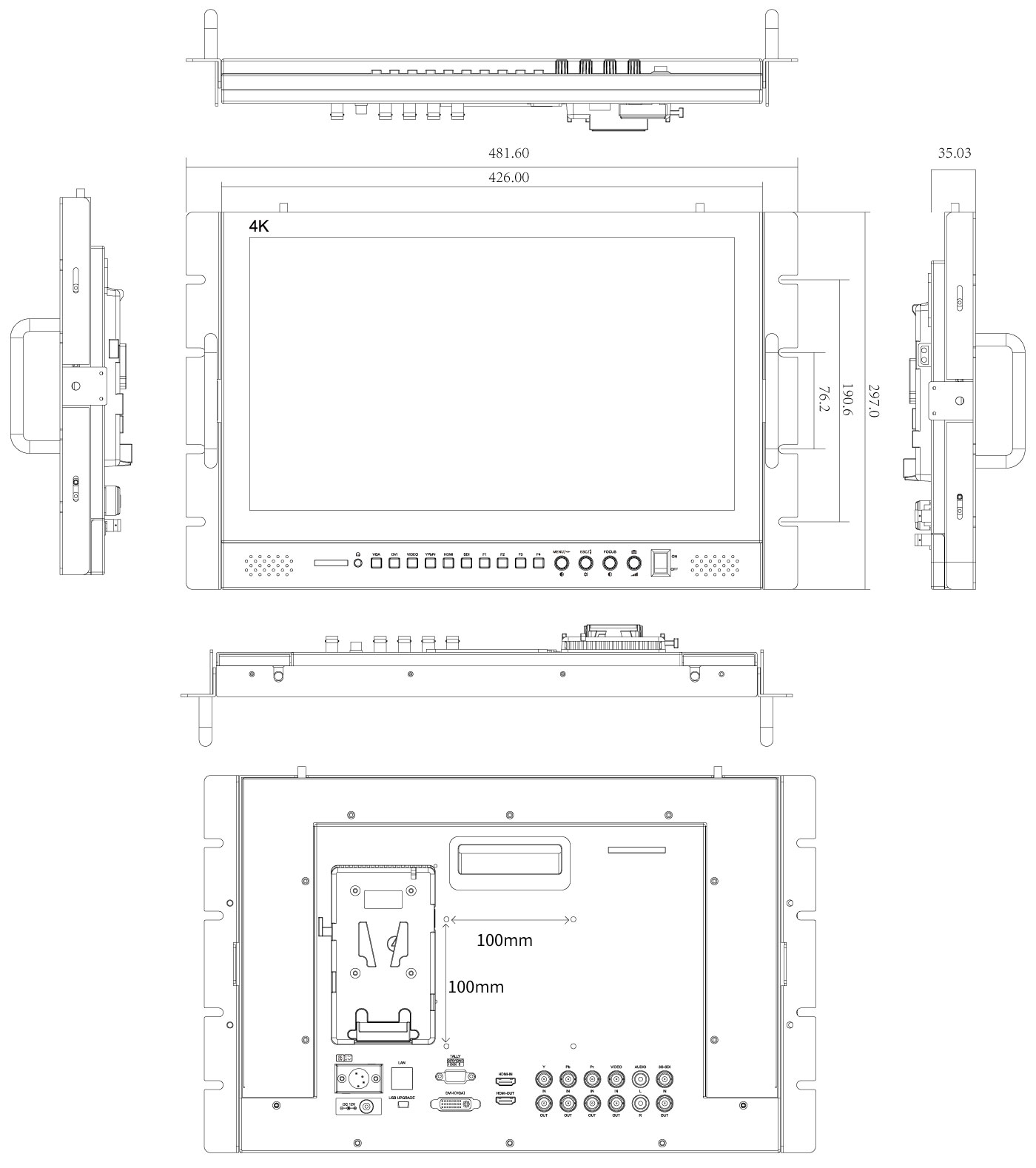

Dimensions (Unit: mm)

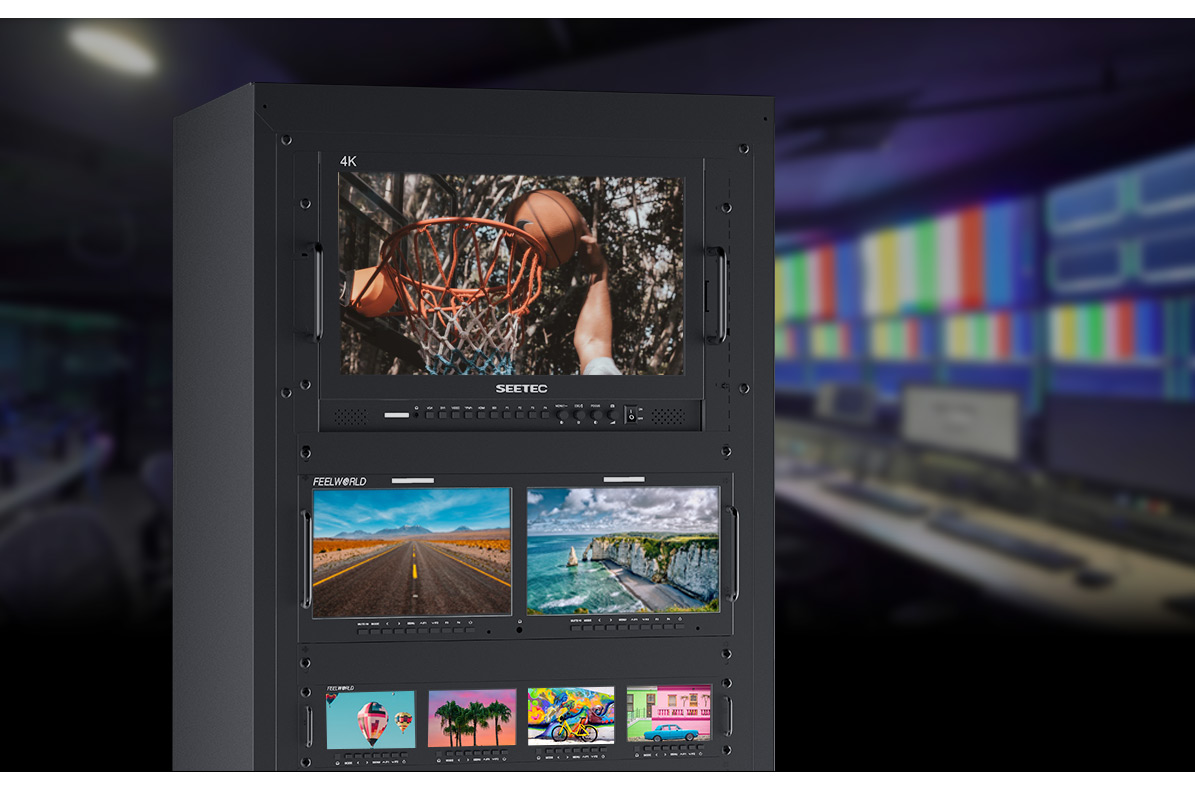

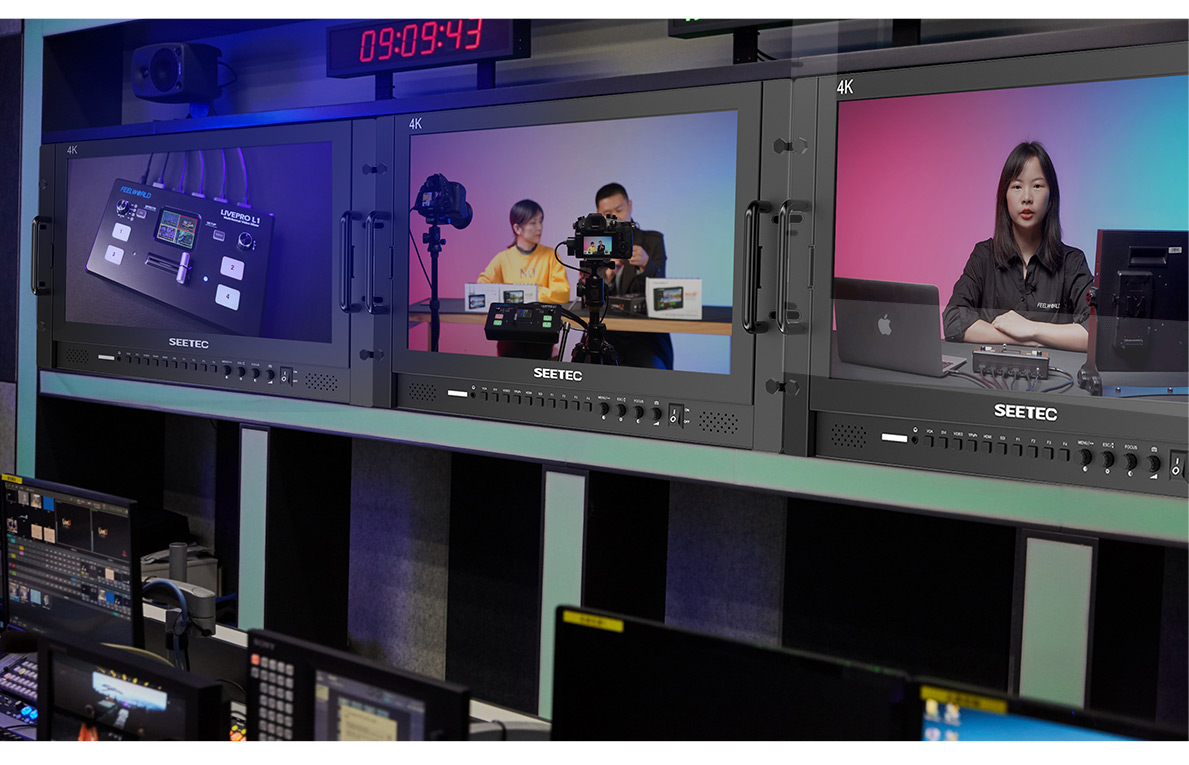

Live Broadcast
The perfect rack mount monitoring solution for broadcasters
When you’re working on a multi camera studio production, you need to see all of your sources, graphics, keys and program displays at the same time. P173-9HSD-RM includes tally lights on the front and near panel displayed in red, green or yellow tally signal. This means during live production you will always know when you are recording or on-air. The amazing clarity of the Full HD resolution screen means you can easily check focus and watch for color consistency across all of your cameras!
The perfect rack mount monitoring solution for broadcasters
When you’re working on a multi camera studio production, you need to see all of your sources, graphics, keys and program displays at the same time. P173-9HSD-RM includes tally lights on the front and near panel displayed in red, green or yellow tally signal. This means during live production you will always know when you are recording or on-air. The amazing clarity of the Full HD resolution screen means you can easily check focus and watch for color consistency across all of your cameras!

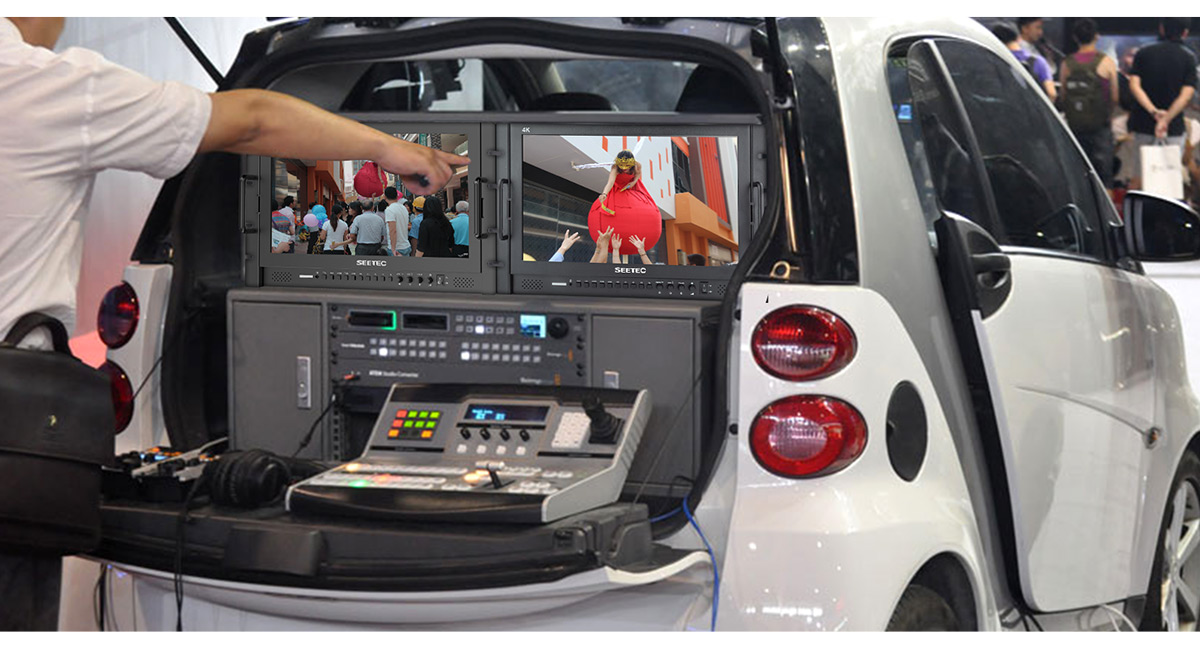

Broadcast Trucks
Incredibly thin mount design for when space is tight!
P173-9HSD-RM is ideal for the limited space in broadcast news trucks. Its super thin design, so it fits in the shallow racks mounted on the inside walls of news vans and trucks. You get both external battery, DC power and XLR power, flexible use it anywhere. There are even built in safe frame guides that make it easy to see safe picture area during live production.
Incredibly thin mount design for when space is tight!
P173-9HSD-RM is ideal for the limited space in broadcast news trucks. Its super thin design, so it fits in the shallow racks mounted on the inside walls of news vans and trucks. You get both external battery, DC power and XLR power, flexible use it anywhere. There are even built in safe frame guides that make it easy to see safe picture area during live production.

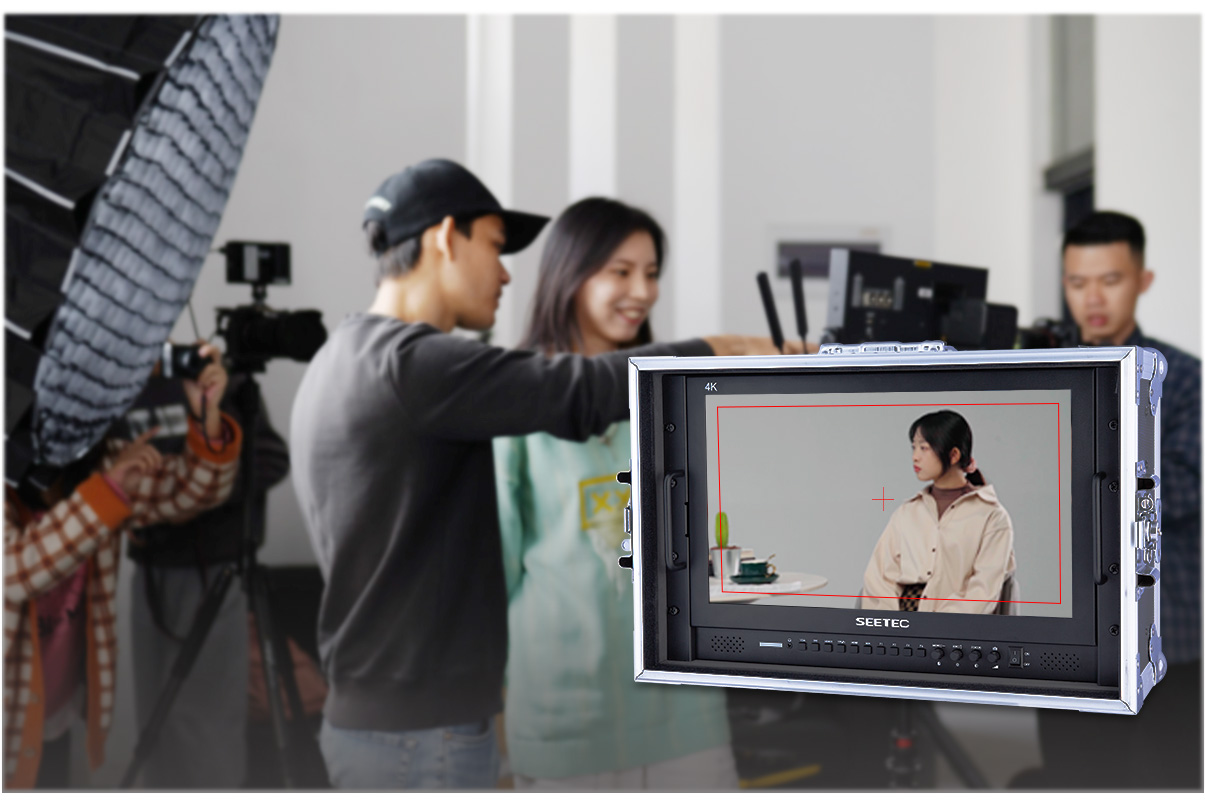

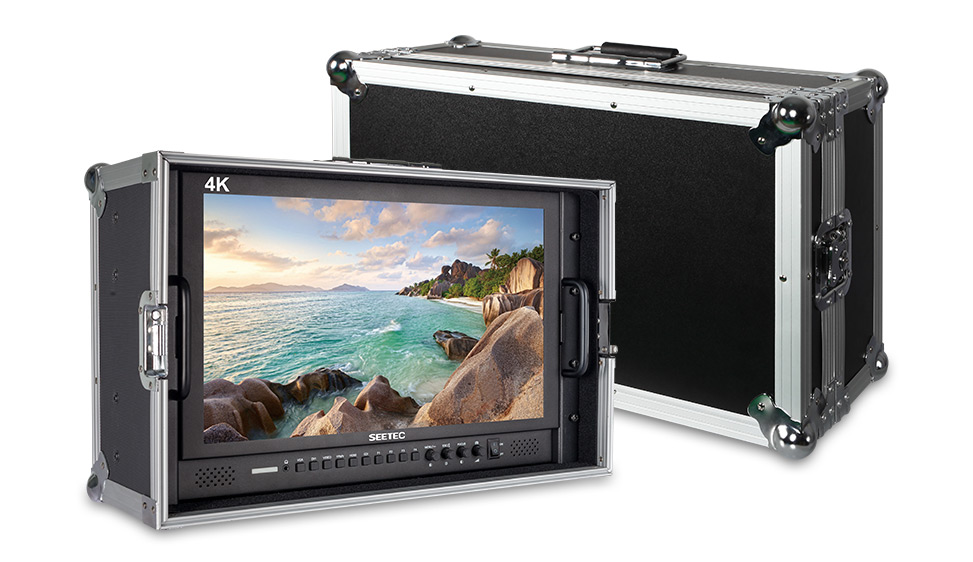

Unique Design， Easy to Install to Aluminium Case
Display all feeds in super sharp detail, efficient on-site monitoring for film crew
For harsh shooting environment, P173-9HSD-RM can install to portable aluminium case, its effectively protect the monitor and easier to carry and transport. So you can use it in any location. Large enough screen and full HD resolution allow you to see image every pixel, and with safe frame helpful for composition during shooting or title placement, ideal for the entire crew to see and tools such as peaking focus assist for focus accurately are ideal for camera assistants.
Display all feeds in super sharp detail, efficient on-site monitoring for film crew
For harsh shooting environment, P173-9HSD-RM can install to portable aluminium case, its effectively protect the monitor and easier to carry and transport. So you can use it in any location. Large enough screen and full HD resolution allow you to see image every pixel, and with safe frame helpful for composition during shooting or title placement, ideal for the entire crew to see and tools such as peaking focus assist for focus accurately are ideal for camera assistants.
Broadcast Control Rooms
Display incredible image quality
As a Broadcaster, you need to be ready to work with any kind of video feed that comes in at any time! P173-9HSD-RM is equipped with 4K HMDI, 3G-SDI, DVI, etc. Signal interfaces, you need not to worry about compatibility with the displays in your control room. The high resolution IPS panel, to get you incredible image quality.
Display incredible image quality
As a Broadcaster, you need to be ready to work with any kind of video feed that comes in at any time! P173-9HSD-RM is equipped with 4K HMDI, 3G-SDI, DVI, etc. Signal interfaces, you need not to worry about compatibility with the displays in your control room. The high resolution IPS panel, to get you incredible image quality.

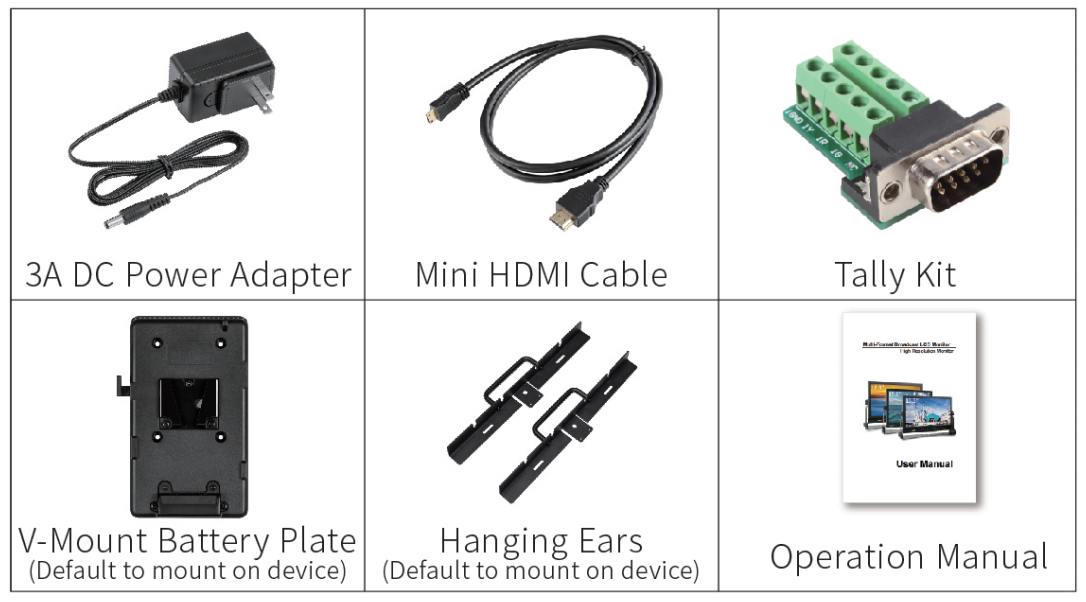

Standard Accessories:
1× Mini HDMI Cable
1× V Battery Plate
1× 3A Power Adapter
1× Tally Kit
2× Hanging Ears
1× Operation Manual
1× Mini HDMI Cable
1× V Battery Plate
1× 3A Power Adapter
1× Tally Kit
2× Hanging Ears
1× Operation Manual
