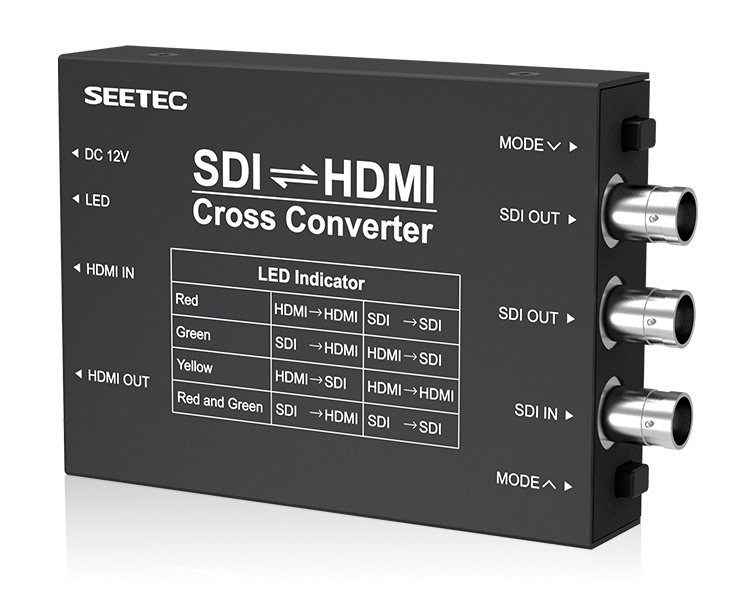

      SDI?HDMI Cross Converter SCH

                        Hits：

    次



















      Model：SCH


      Introduction
      ● 1 SDI Input, 2 SDI Output, and 1 HDMI Input,1 HDMI Output
● Double Power Supply System
● Standard 1/4 Screw Threads
● Power/Input/Output Status Indicator
● Heavy Duty Metal Housing


      Input
      3G/HD/SD-SDI,
HDMI


      Output
      3G/HD/SD-SDI,
HDMI



      DM


      pdf





      Download












        •





















































      • OVERVIEW
        •

      • FEATURES
        •

      • SPECIFICATIONS
        •

      • VIDEO
        •

      • APPLICATION
        •

      • ACCESSORIES
        •











      /sdi-hdmi-converter




      SEETEC New Release Mini Converters

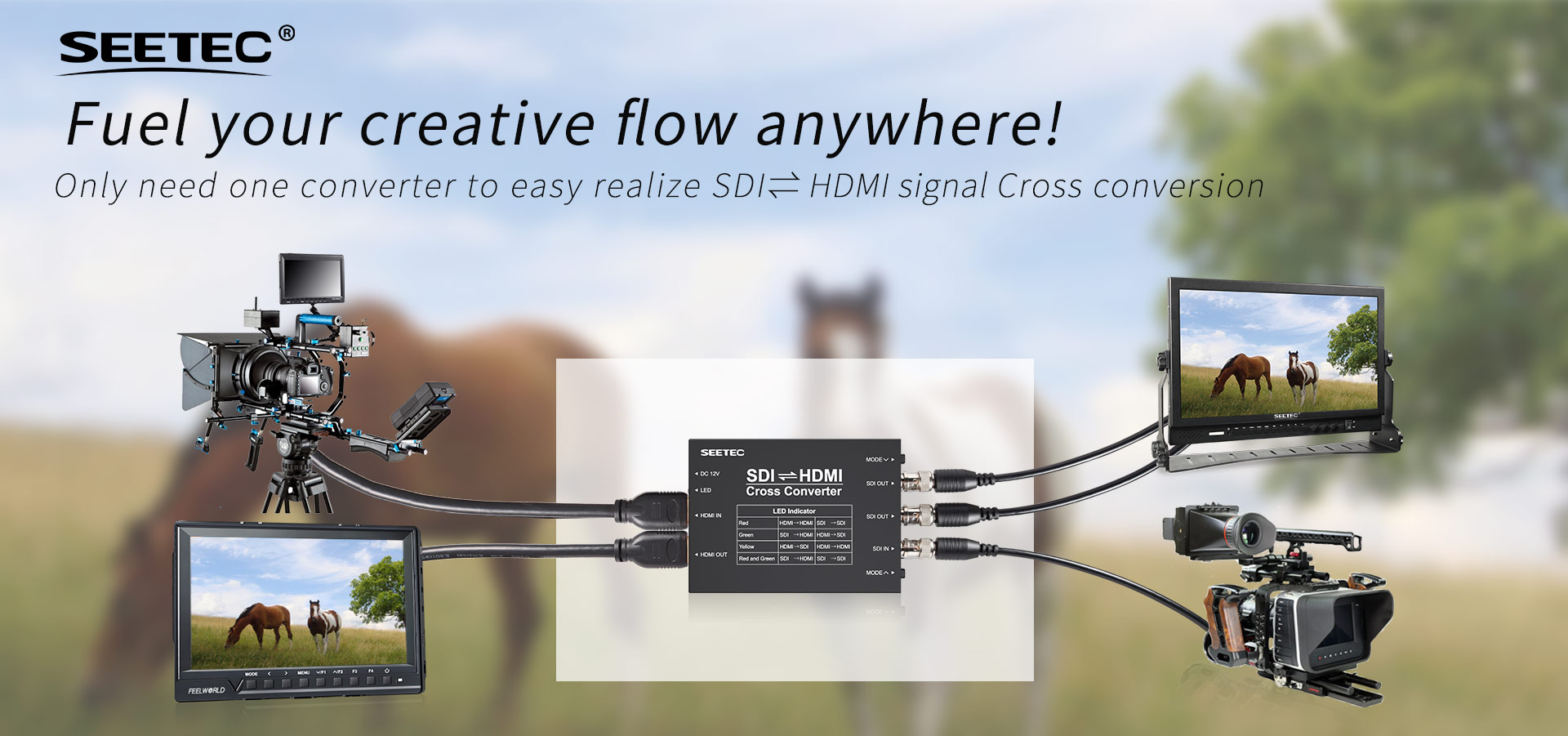

	The SEETEC Mini Converters are incredibly tiny broadcast quality video converters that come in three models, SDI ? HDMI Cross Converter, SDI to HDMI Converter , HDMI to SDI Converter.

	Standard “1/4-20”screw threads for flexible installing. You get HDMI and professional 3G-SDI connections for working with almost SD and HD formats. Flexible double power supply System that supports F970, D28S, E6, battery plate and also power adapter.

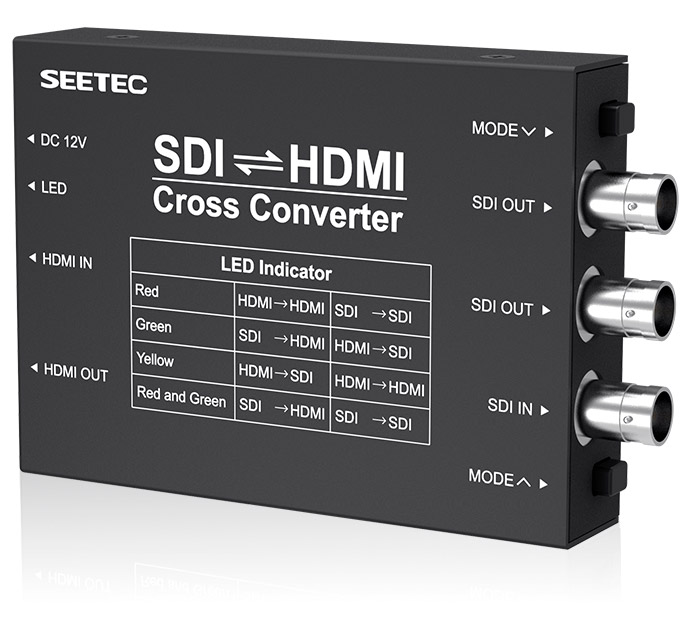

      SDI ? HDMI Cross Converter

		Input: 1X HDMI；1X SDI

		Output: 1X HDMI；2X SDI


      hd-sdi-hdmi-converter






      hdmi-bnc-converter














      •

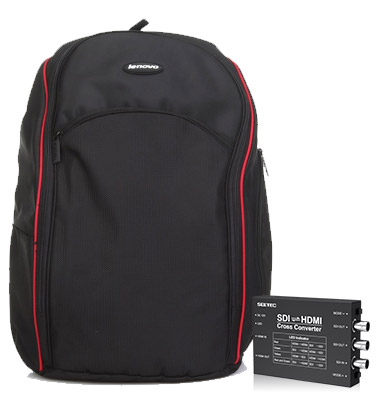

        Use Anywhere

				Mini size broadcast quality converters!

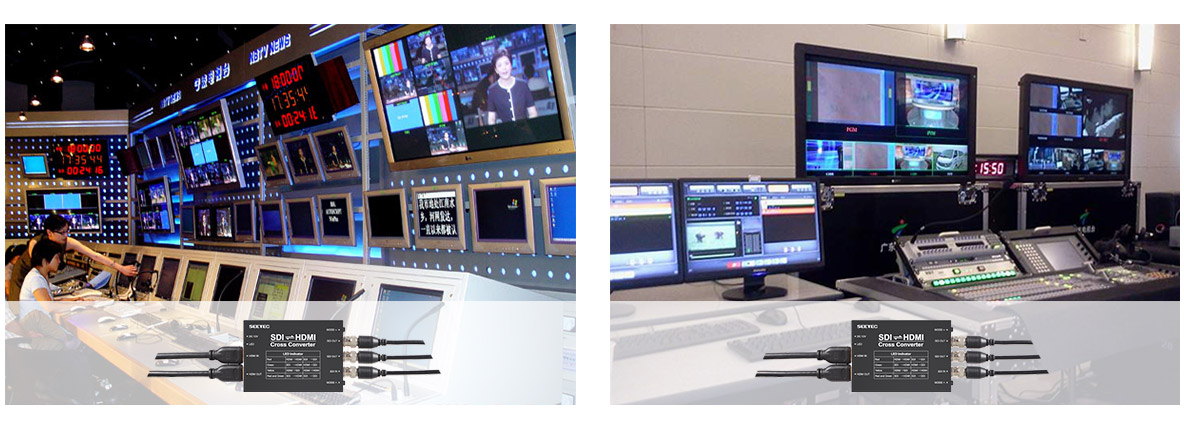

				SEETEC Mini Converters are so small you can use them anywhere! Whether you're carrying one in your laptop bag or in your outside broadcast van and road cases. They're perfect for use on set in broadcast news, at live events that have screens and cameras all around, or even in episodic television shows feeding big screen televisions that are part of the set!


        •









      •

        hdmi-sdi-adapter


        •










      hd-sdi-connector

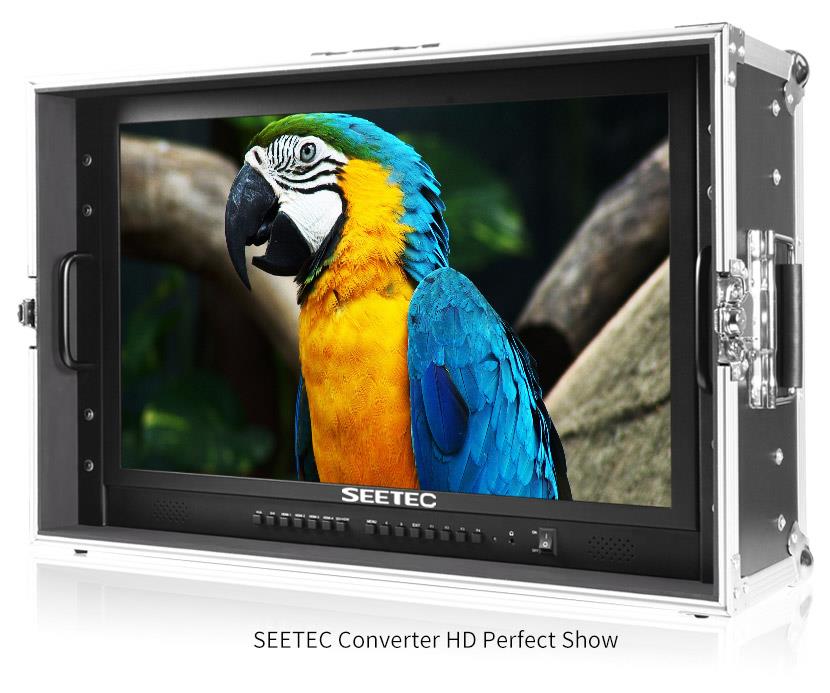

      Enjoy Perfect Visual Experience

	High-performance digital chip, 1080P HD resolution, perfect show, make sure that the screen-definition picture quality without distortion.

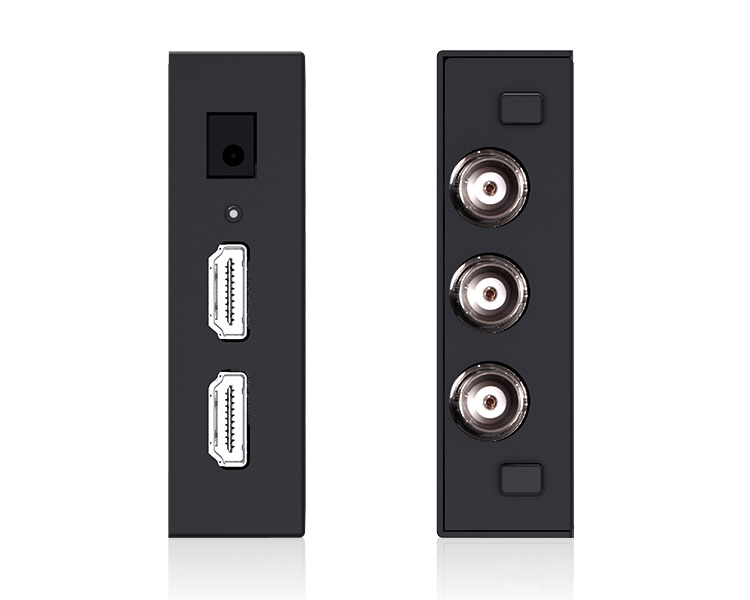

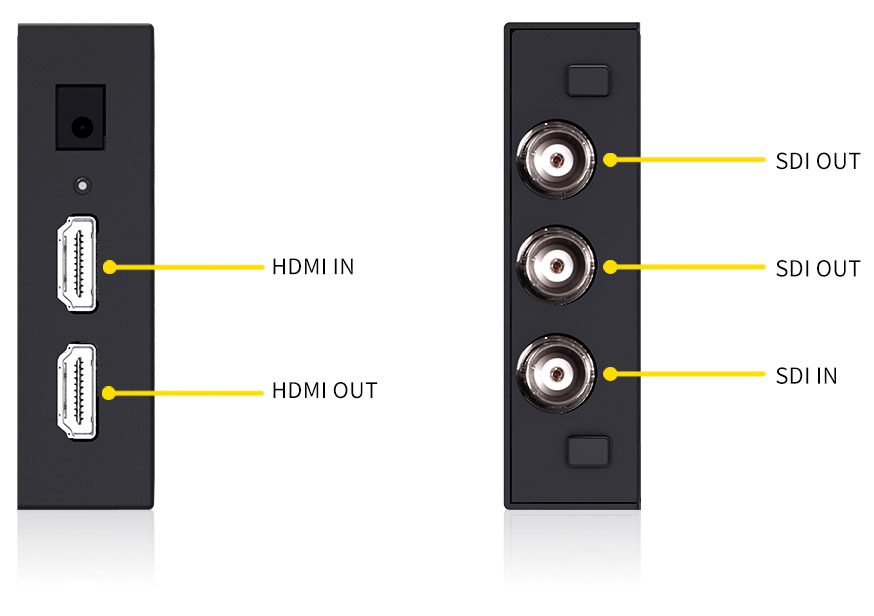

      Full Size Connections

		Works with the cables you already have!

		SEETEC Mini Converter feature full size 3G-SDI and HDMI connections! The SDI connections are multi-rate, compatible with SD and HD-SDI equipment. Mini Converter SDI ? HDMI Cross features One SDI input, Two SDI loop-out, One HDMI input, One HDMI output so you can connect it to multiple devices such as switchers, routers, monitors and more!


      hdmi-hd-sdi-converter

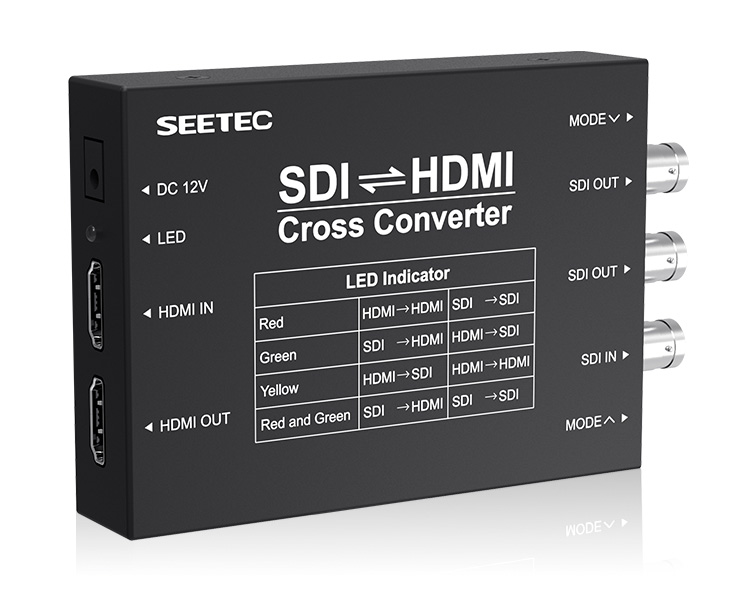

      Easy Control Simple to set up

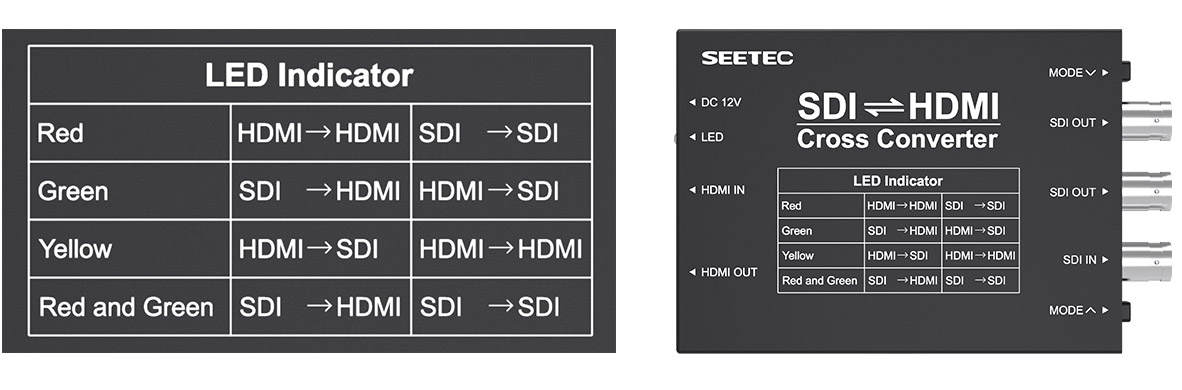

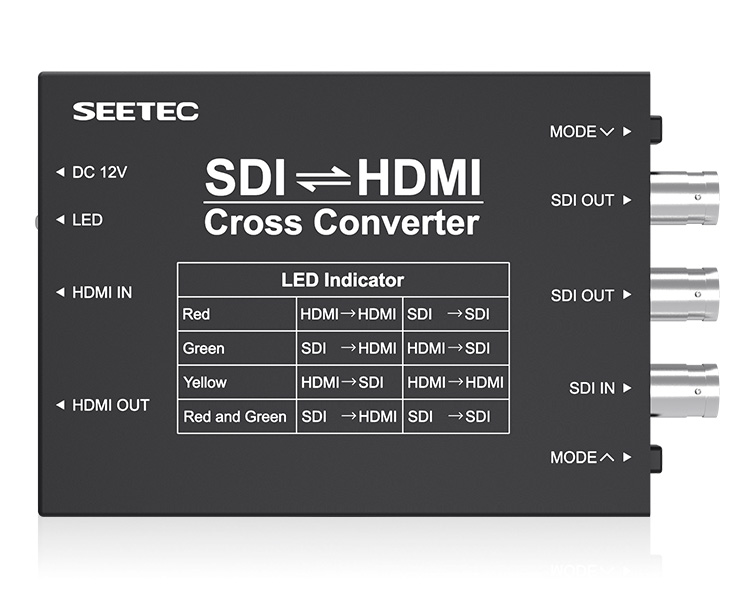

		SDI ? HDMI Cross Converter Provides LED indicators, to directive Signal Mode you choice. There's even a printed switch diagram on converter, so you can setting quickly, only need to press mode up/ down button to switch indictor color.

		Red：HDMI to HDMI, SDI to SDI

		Green：SDI to HDMI, HDMI to SDI

		Yellow：HDMI to SDI, HDMI to HDMI

		Red/ Green Flashing：SDI to HDMI，SDI to SDI




      video-monitor-switch







      Flexible Double Power Supply System

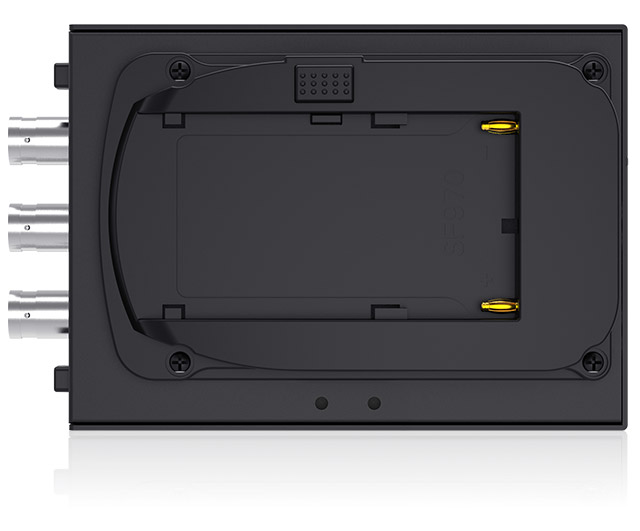

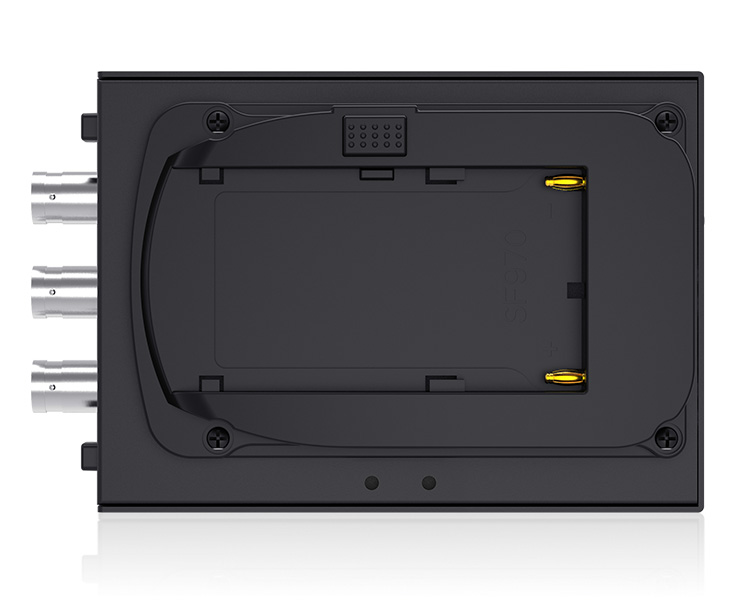

		The Mini Converter can be powered in two ways: with an DC adapter or lithium batteries. With F970 battery plate, lithium batteries are commonly used and are easy to find and replace, it's the best choice for outdoor operation.


      hdmi-to-3g-sdi

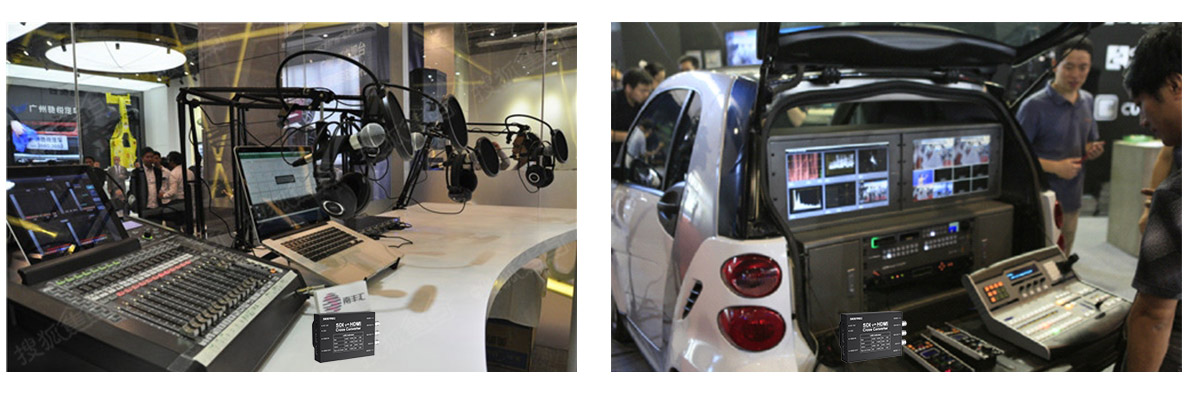

      Simple, Compact and Rugged

		Built for any environment!

		SEETEC Mini Converters are designed to be used anywhere, machined out of a solid block of metal! You can put them in equipment racks in the studio, on news trucks, or use them outside for live sports and other events.


      sd-to-hd-converter

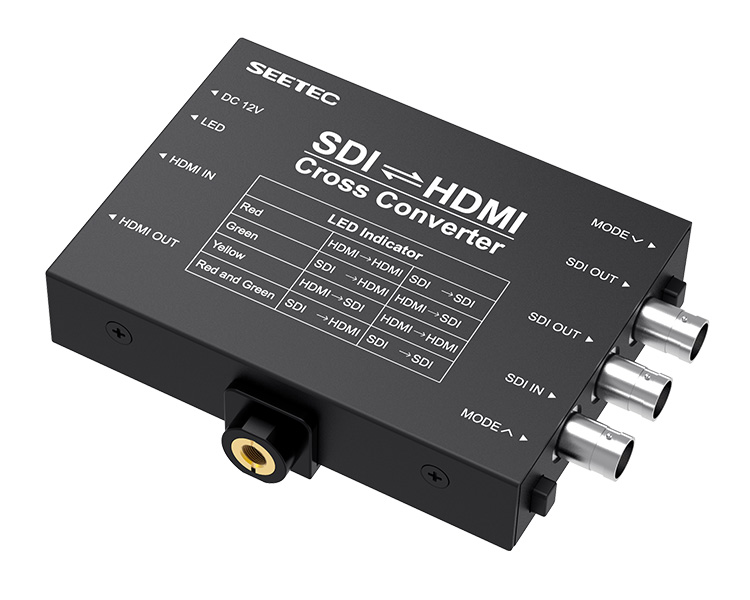

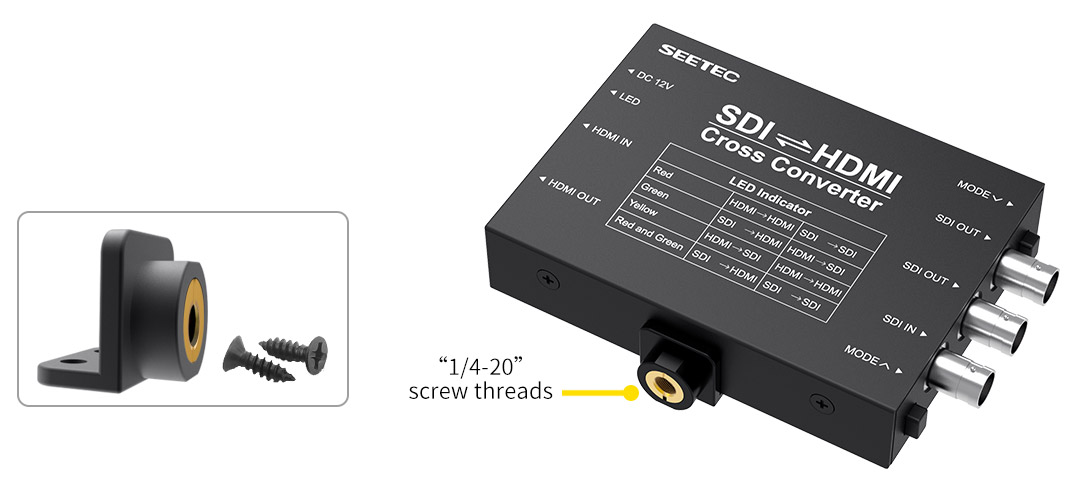

      Flexible Installing

		Standard “1/4-20”screw threads for flexible installing.


      sdi-video

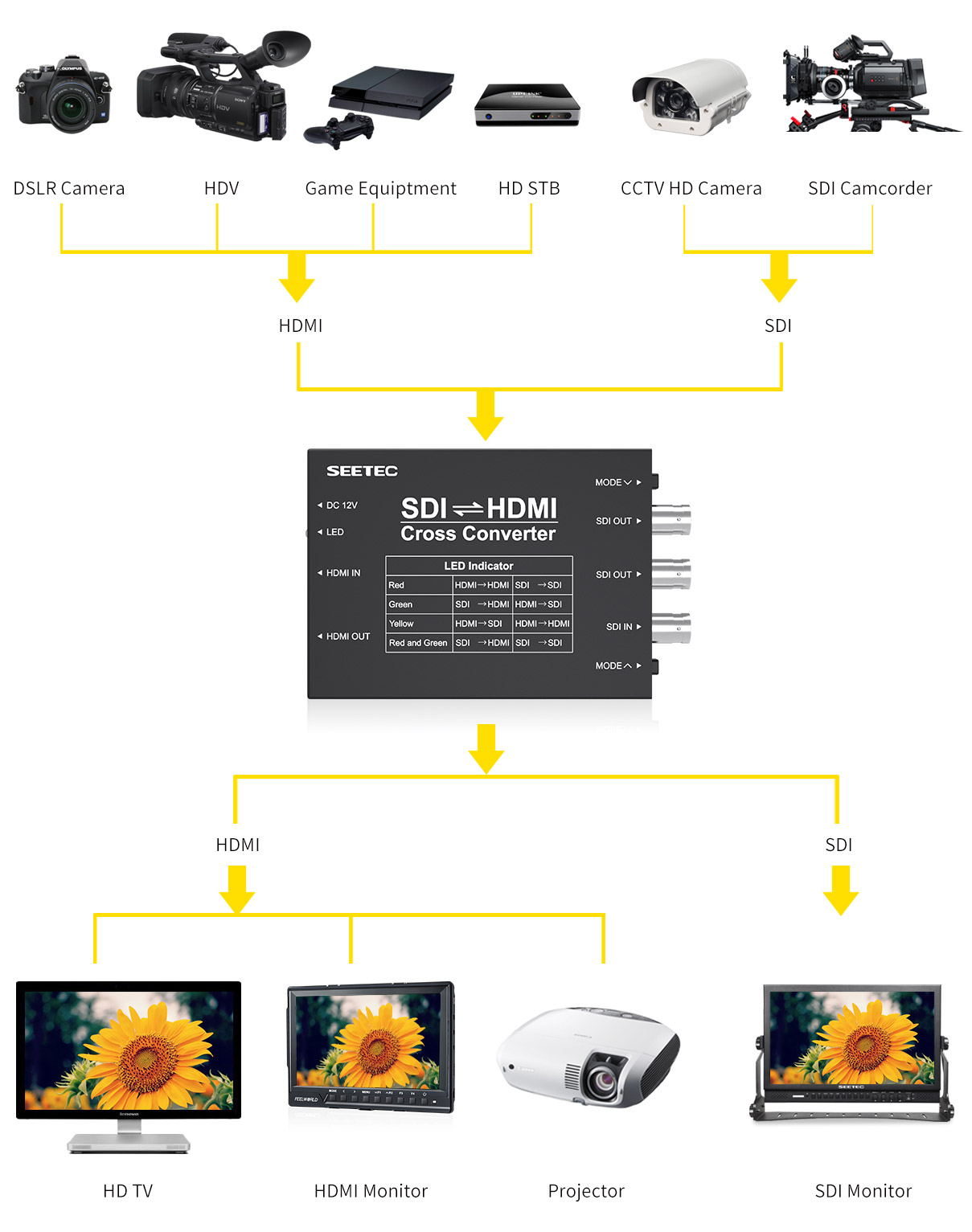

      Application Show


      3g-converter



























      SDI-HDMI Cross Converter excellence compatibility, best image quality and supporting wide signal formats. 3G/HD/SD-SDI to HDMI broadcast grade converter is a professional video format converter which could convert HD digital component serial interface SDI signal to HDMI signal, and also HDMI to 3G/HD/SD-SDI broadcast grade converter is professional video format converter which can convert HDMI digital to HD-SDI signal.

		Widely applied in multimedia broadcast, program production and edit in broadcasting and television, HD video information release, HD video remote transmission, video conference, multimedia advertisement and video security monitoring and so on.









      Features:

		1. 1 SDI input, 2 SDI output, and 1 HDMI input,1 HDMI output.

		2. Complies with SMPTE 424M, SMPTE 292M, SMPTE 259M.

		3. Enhanced HD signal processing technology supports maxim 100 meter 3G-SDI transmission.

		4. Supports wide range input voltage from 5V - 24V.

		5. Double Power Supply System, with DC adapter or battery.

		6. Mini size design easy to carry for engineering.

		7. Standard 1/4 screw threads for installing.

		8. Power/input/output status indicator.

		9. Heavy duty metal housing.



















      Model






			 SCH (SDI ? HDMI Cross Converter)









      Input






			 1 X BNC
			 3G/HD/SD-SDI




			 1 X HDMI
			 HDMI









      Output






			 2 X BNC
			 3G/HD/SD-SDI




			 1 X HDMI
			 HDMI









      SDI Support Format






			3G-SDI:1080P(60/59.94/50)




			HD-SDI:1080P(30/29.97/25/24)




			1080I(60/59.94/50)




			1080PsF24




			720P(60/59.94/50/30/25/24)









      HDMI Support Format






			1080P(60/59.94/50/30/29.97/25/24)




			1080I(60/59.94/50)




			1080PsF24




			720P(60/59.94/50/30/25/24)









      General






			 Power Consumption
			 ≤4.2W




			 Input Voltage
			 DC 5～24V




			 Connector
			 DC 12V




			 Battery Plate
			 F970 (Standard); D28S, E6 (Optional)




			 WorkingTemperature
			 -20°C~60°C




			 Storage Temperature
			 -30°C~70°C




			 Unit Size (mm)
			 108.5L×78.8H×23D




			 Unit Weight
			 230g/ 260g (With F970 Plate)

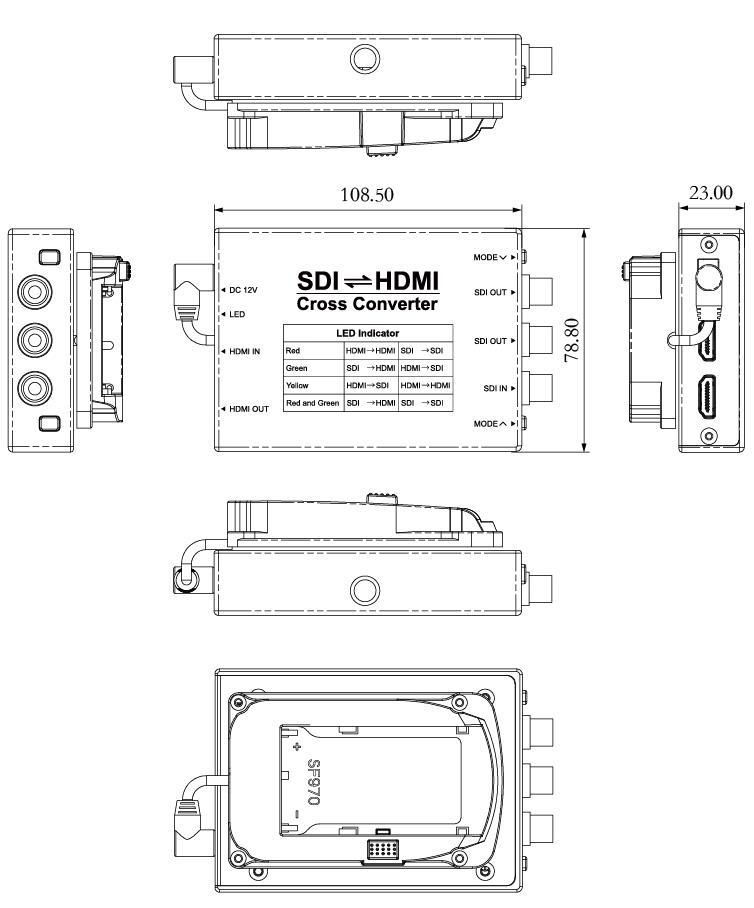

      Dimensions (Unit: mm)
























      3g-converter











      Standard Accessories:

	1× Power Adapter

	1× F970 Battery Plate

	1× Operation Manual
