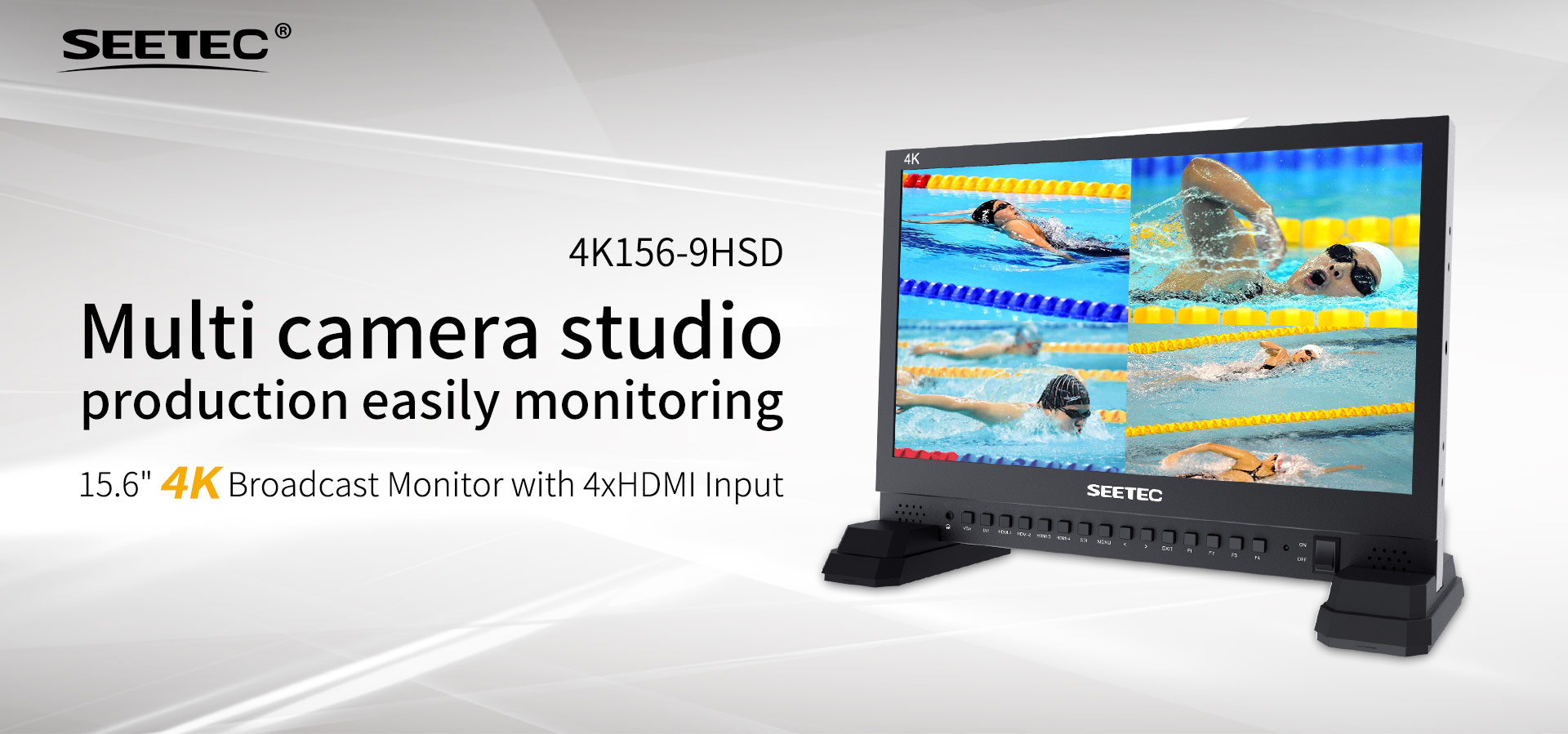

SEETEC 15.6" 4K Broadcast Monitor with IPS UHD 3840x2160 4xHDMI Quad Split Display 4K156-9HSD
Model：4K156-9HSD
Introduction
Screen Size： 15.6" IPS
Resolution： 3840×2160 pixels
Aspect ratio： 16:9
Brightness： 300cd/m2
Input
SDI, HDMIx4, DVI, VGA, Audio(L/R)
Output
SDI, Stereo Headphone, Speaker(built-in)
DM
Shop/2017/9/SEETEC-4K-UHD Monitor-Specification.jpg
Download
正在提交中....
Contact Us
OVERVIEW
FEATURES
SPECIFICATIONS
VIDEO
APPLICATION
ACCESSORIES
SEEETEC 4K156-9HSD is the Ultra HD broadcast monitor with 4x4K HDMI input, 3G-SDI input/ loop out for native display up to 2160p60.
You get a professional broadcast monitor that supports the latest Ultra HD 3840x2160 resolutions, bring unbeatable image clarity in cinematic display.
The machined metal design includes a built in control panel for using features such as the built in quad view, peaking filter, check field, image freeze, zoom, image flip, center markers, screen markers, pixel to pixel, color temperature and more, you can easily check focus and watch for color consistency across all of your cameras.
You get a professional broadcast monitor that supports the latest Ultra HD 3840x2160 resolutions, bring unbeatable image clarity in cinematic display.
The machined metal design includes a built in control panel for using features such as the built in quad view, peaking filter, check field, image freeze, zoom, image flip, center markers, screen markers, pixel to pixel, color temperature and more, you can easily check focus and watch for color consistency across all of your cameras.

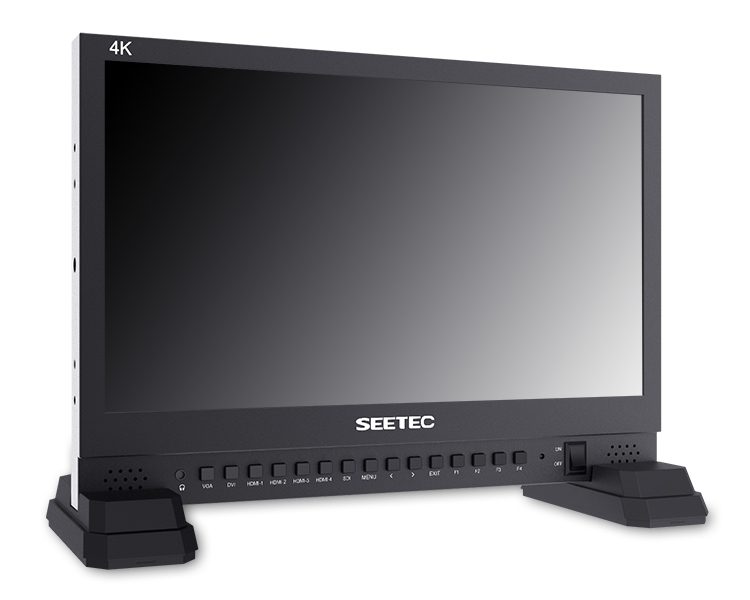

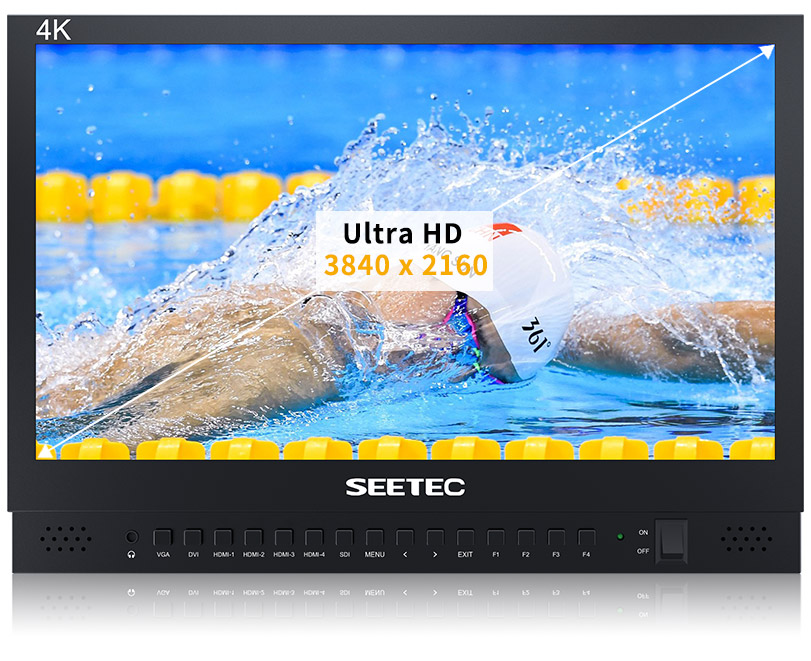

Extremely High Resolution
15.6 inch 3840 x 2160 resolution allows you to see every pixel in an Ultra HD image
Now you can install the perfect future proof monitoring solution because 4K156-9HSD will handle monitoring from all your SD, HD-SDI, 3G-SDI and 4K HDMI 2160P sources. The full resolution Ultra HD monitor allows you to see every single pixel in a 3840 x 2160 resolution HDMI input, even when running at a faster 60p frame rate! The fast frame rate support is perfect for fast motion such as sports, plus you get a totally future proof design!
15.6 inch 3840 x 2160 resolution allows you to see every pixel in an Ultra HD image
Now you can install the perfect future proof monitoring solution because 4K156-9HSD will handle monitoring from all your SD, HD-SDI, 3G-SDI and 4K HDMI 2160P sources. The full resolution Ultra HD monitor allows you to see every single pixel in a 3840 x 2160 resolution HDMI input, even when running at a faster 60p frame rate! The fast frame rate support is perfect for fast motion such as sports, plus you get a totally future proof design!
Better Monitoring
IPS 170° wider view angle, precise color restoration
SEETEC 4K156-9HSD has a wide 170º viewing angle, which means it's easy to see, even when several crew members are watching. 4K Ultra HD LCD panel ensure the monitor more precise color restoration exquisite picture quality more rich color levels.
IPS 170° wider view angle, precise color restoration
SEETEC 4K156-9HSD has a wide 170º viewing angle, which means it's easy to see, even when several crew members are watching. 4K Ultra HD LCD panel ensure the monitor more precise color restoration exquisite picture quality more rich color levels.

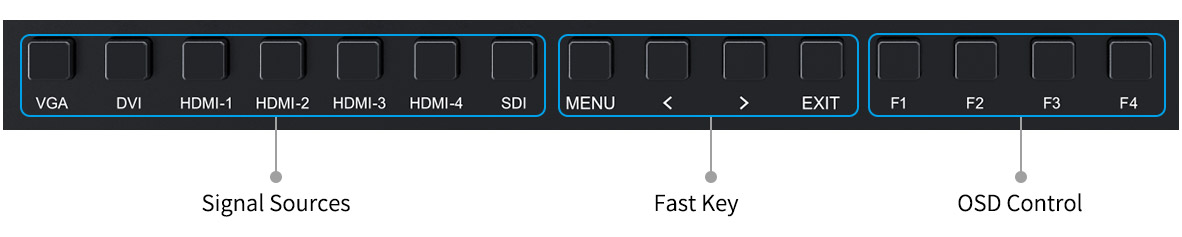

Front Panel Control
Technical control at the touch of a button!
When you're on location you need to be able to quickly and easily access the controls such as auxiliary functions and input selection. With 4K156-9HSD-384 that's no longer a problem. The buttons are extremely durable, designed to last for years, and give you super fast access to all of the technical and professional broadcast controls you need during production.
Technical control at the touch of a button!
When you're on location you need to be able to quickly and easily access the controls such as auxiliary functions and input selection. With 4K156-9HSD-384 that's no longer a problem. The buttons are extremely durable, designed to last for years, and give you super fast access to all of the technical and professional broadcast controls you need during production.

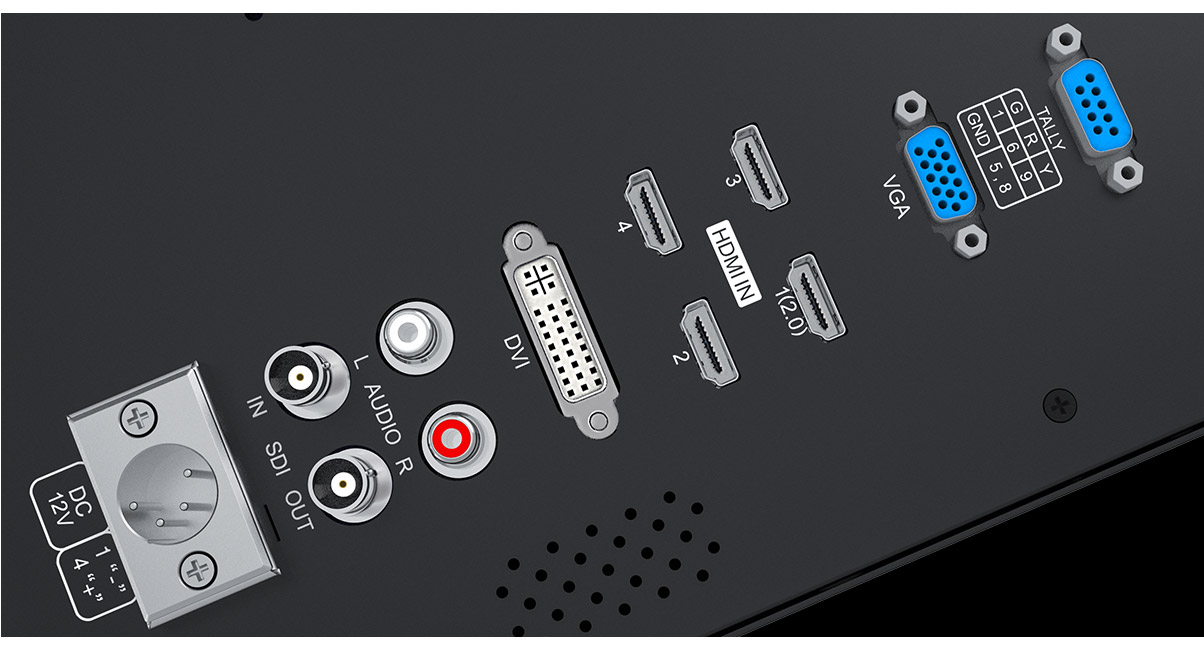

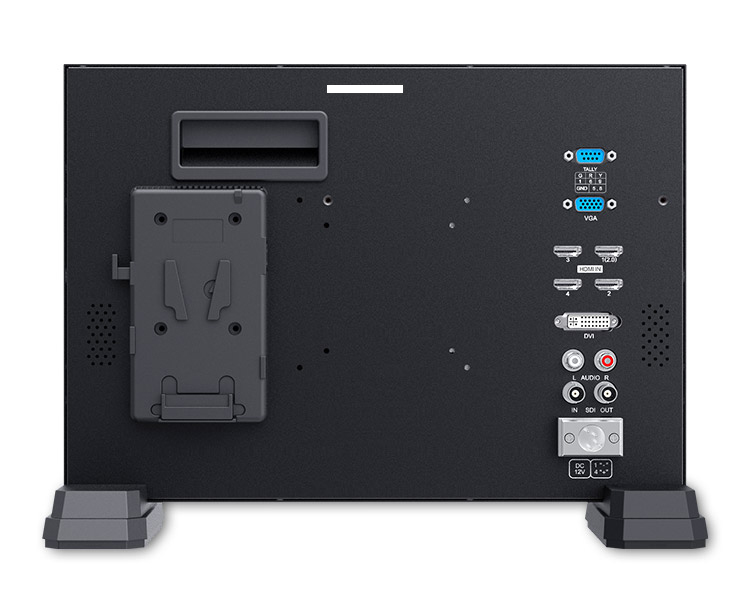

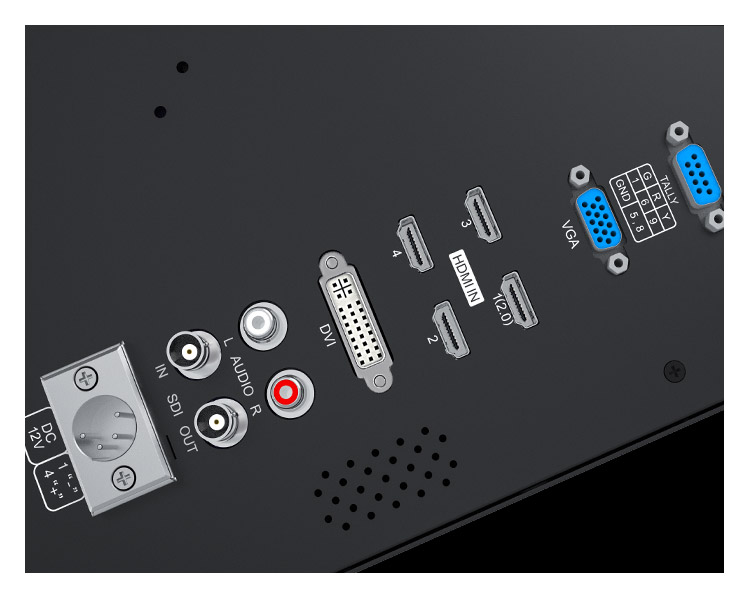

Professional Connections
Connect up to 5 cameras
SEETEC 4K156-9HSD features a professional broadcast SDI monitor that also includes loads of HDMI connections! With four HDMI and one 3G-SDI inputs, you can connect up to 5 cameras, computers or other sources and work in all SD and HD formats up to 1080p60! That means you can start with affordable HDMI consumer cameras, or work with professional SDI broadcast cameras. You also get reference input, analog audio.
Connect up to 5 cameras
SEETEC 4K156-9HSD features a professional broadcast SDI monitor that also includes loads of HDMI connections! With four HDMI and one 3G-SDI inputs, you can connect up to 5 cameras, computers or other sources and work in all SD and HD formats up to 1080p60! That means you can start with affordable HDMI consumer cameras, or work with professional SDI broadcast cameras. You also get reference input, analog audio.

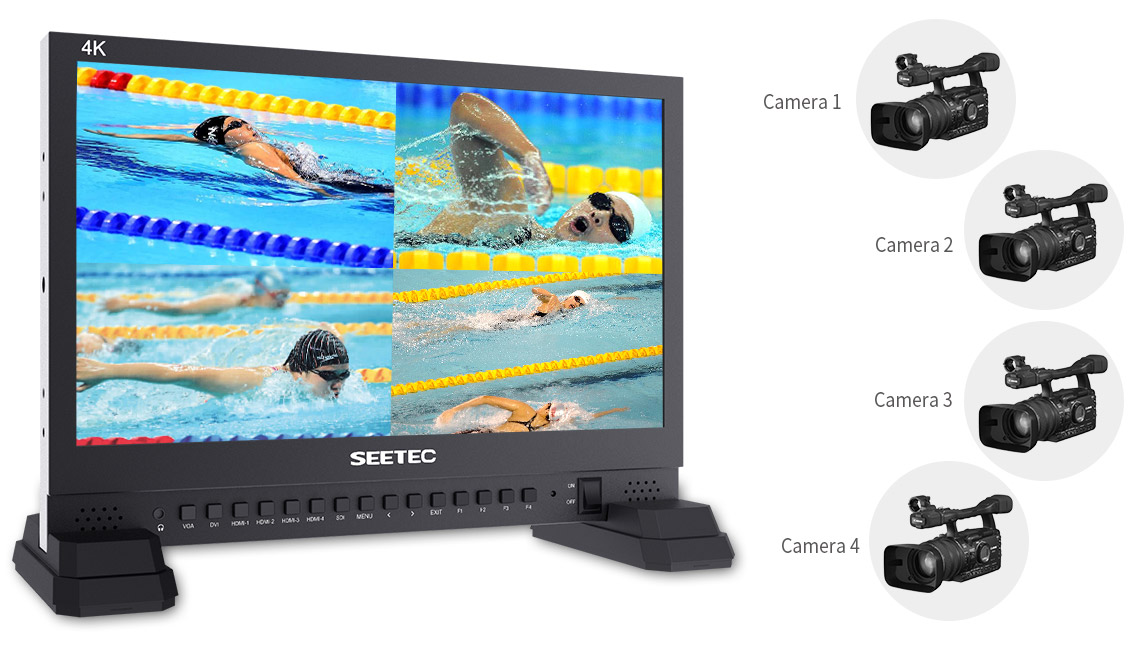

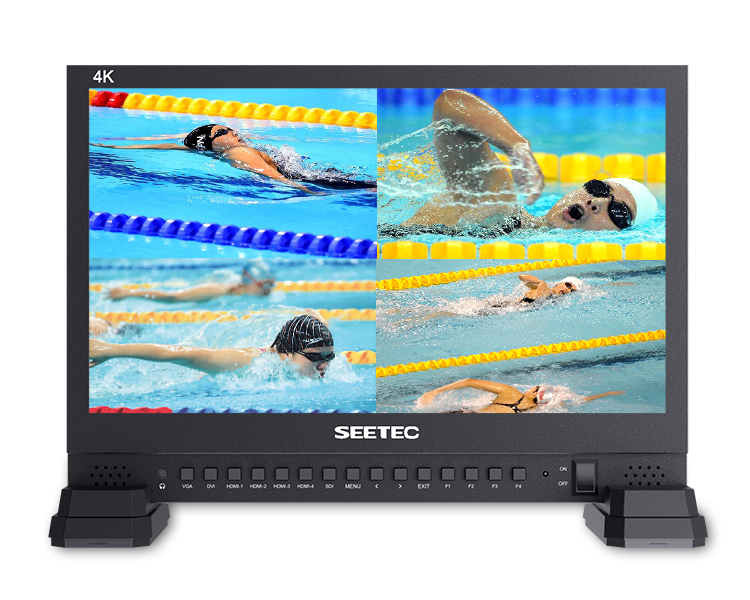

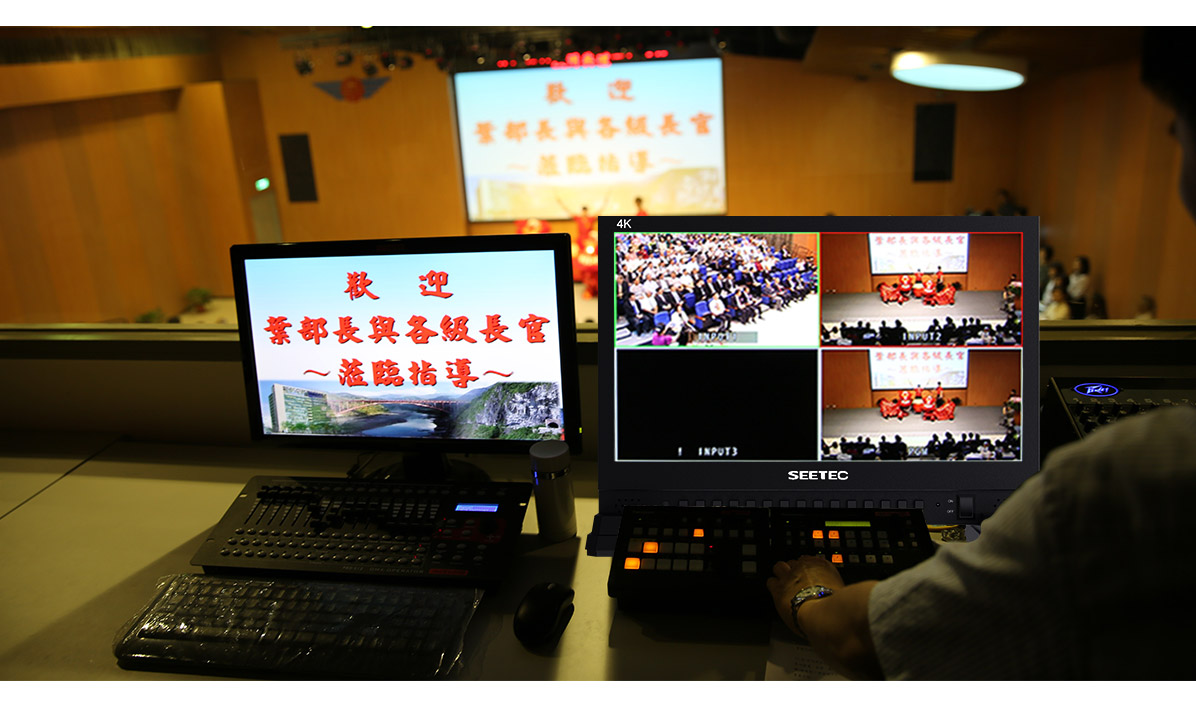

Built in Quad View
See more video sources on a single monitor
When you're creating a live program from multiple cameras, it's important to be able to see more video sources at the same time. 4K156-9HSD has four 4K HDMI inputs, one SDI input and loop put, DVI, VGA, supports quad view, dual view, single view monitoring functions, allowing you to get perfect multi camera monitoring in any location!
See more video sources on a single monitor
When you're creating a live program from multiple cameras, it's important to be able to see more video sources at the same time. 4K156-9HSD has four 4K HDMI inputs, one SDI input and loop put, DVI, VGA, supports quad view, dual view, single view monitoring functions, allowing you to get perfect multi camera monitoring in any location!

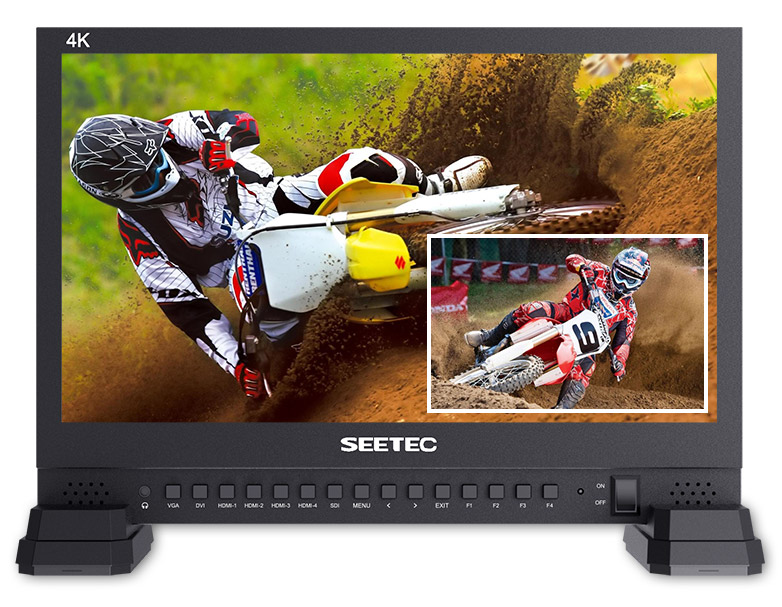

Built in Dual View
Amazing picture in picture effects
The PIP function lets you position and realize live video, all in real time. That means you can create professional picture in picture effects by adjusting the brightness, contrast, hue, saturation, sharpness, backlight. Using a picture in picture effect to superimpose a commentator when covering events such as sports, training videos, interviews and even gaming competitions.
Amazing picture in picture effects
The PIP function lets you position and realize live video, all in real time. That means you can create professional picture in picture effects by adjusting the brightness, contrast, hue, saturation, sharpness, backlight. Using a picture in picture effect to superimpose a commentator when covering events such as sports, training videos, interviews and even gaming competitions.

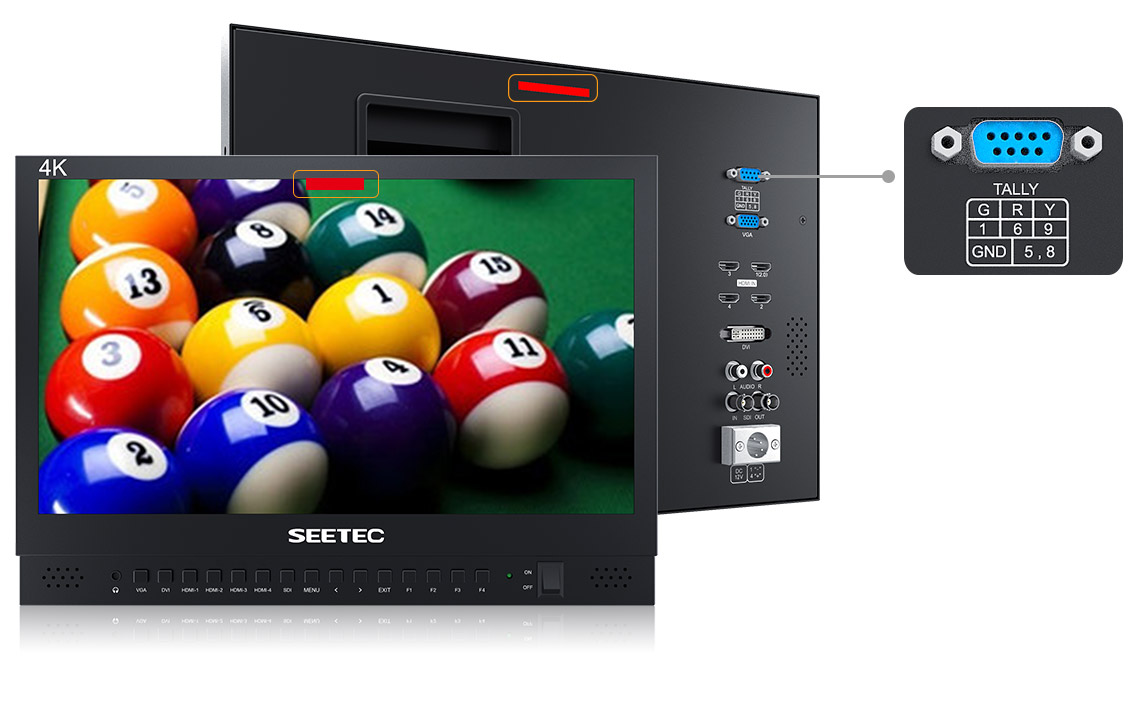

3-color Tally Light
Film Crew Shooting convenient Control
4K156-9HSD monitors feature super clear LCD screens with tally so it's the perfect solution for live broadcasts. 4K156-9HSD includes green, red and yellow tally signal. This means during live production you will always know when you are recording or on-air, or you can see which camera is cued up on your switcher's preview output. Tally is connected via an industry standard parallel pin connector on the rear panel so you get full compatibility with switchers or automation systems.
Film Crew Shooting convenient Control
4K156-9HSD monitors feature super clear LCD screens with tally so it's the perfect solution for live broadcasts. 4K156-9HSD includes green, red and yellow tally signal. This means during live production you will always know when you are recording or on-air, or you can see which camera is cued up on your switcher's preview output. Tally is connected via an industry standard parallel pin connector on the rear panel so you get full compatibility with switchers or automation systems.

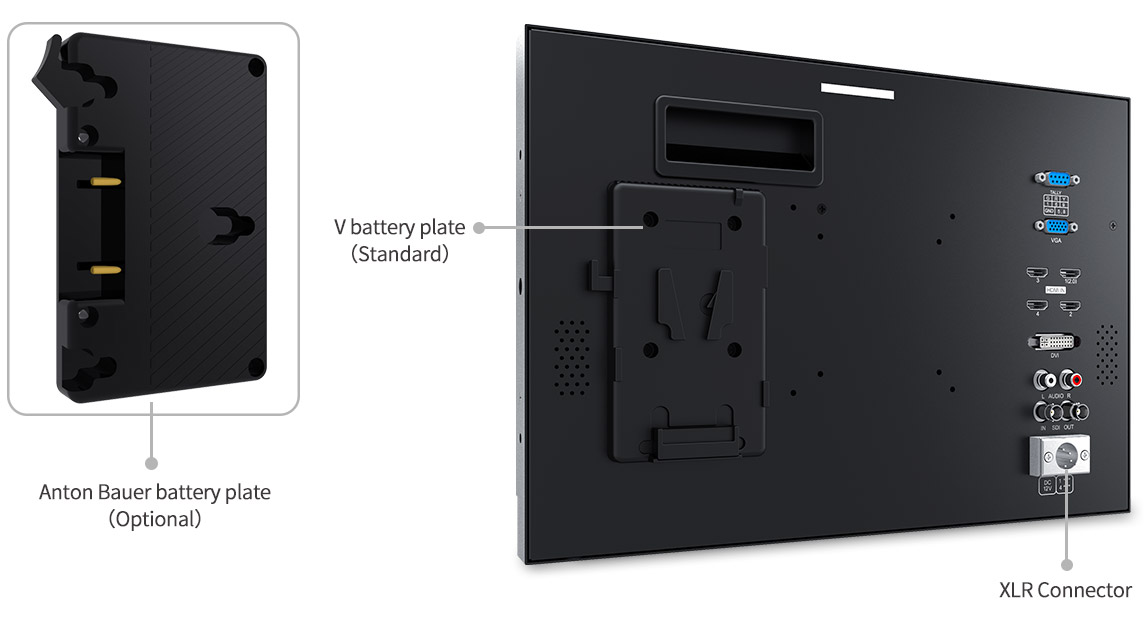

Uninterrupted Power
Plug it in or go mobile
Whether you're working with SD, HD or Ultra HD, 4K156-9HSD is an incredibly versatile monitor packed with features that make it perfect for broadcast and post! With both XLR power, you can install it anywhere! Use external batteries on set, or plug it into standard power in your news rooms, vans, and post facilities.
Plug it in or go mobile
Whether you're working with SD, HD or Ultra HD, 4K156-9HSD is an incredibly versatile monitor packed with features that make it perfect for broadcast and post! With both XLR power, you can install it anywhere! Use external batteries on set, or plug it into standard power in your news rooms, vans, and post facilities.

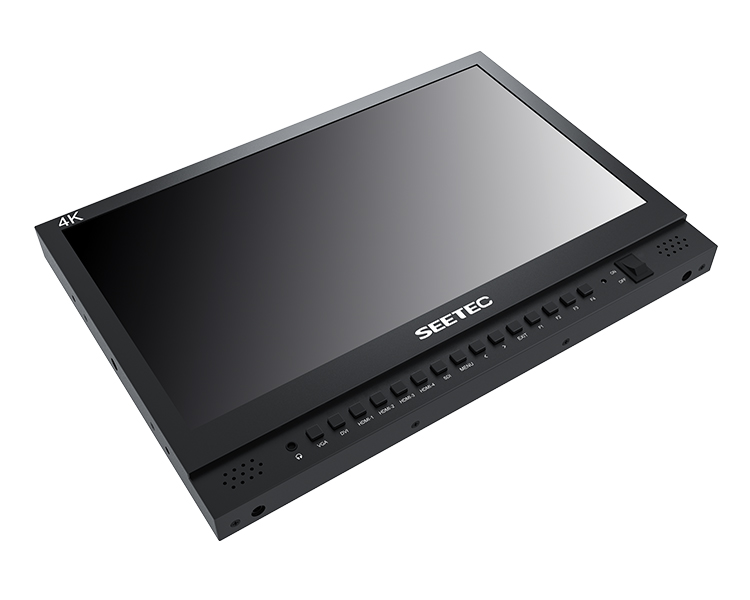

SEETEC 4K156-9HSD features an elegant machined metal design that's durable and extremely strong! Its modern design looks great in your studio and is also robust enough to be used on the road, in fly-away kits and even at live events. From its machined metal front to its fully digital backlight controls and professional broadcast connections, the 4K156-9HSD has been designed to handle the stress of professional broadcast, television, film and commercial production on the road or in your studio!

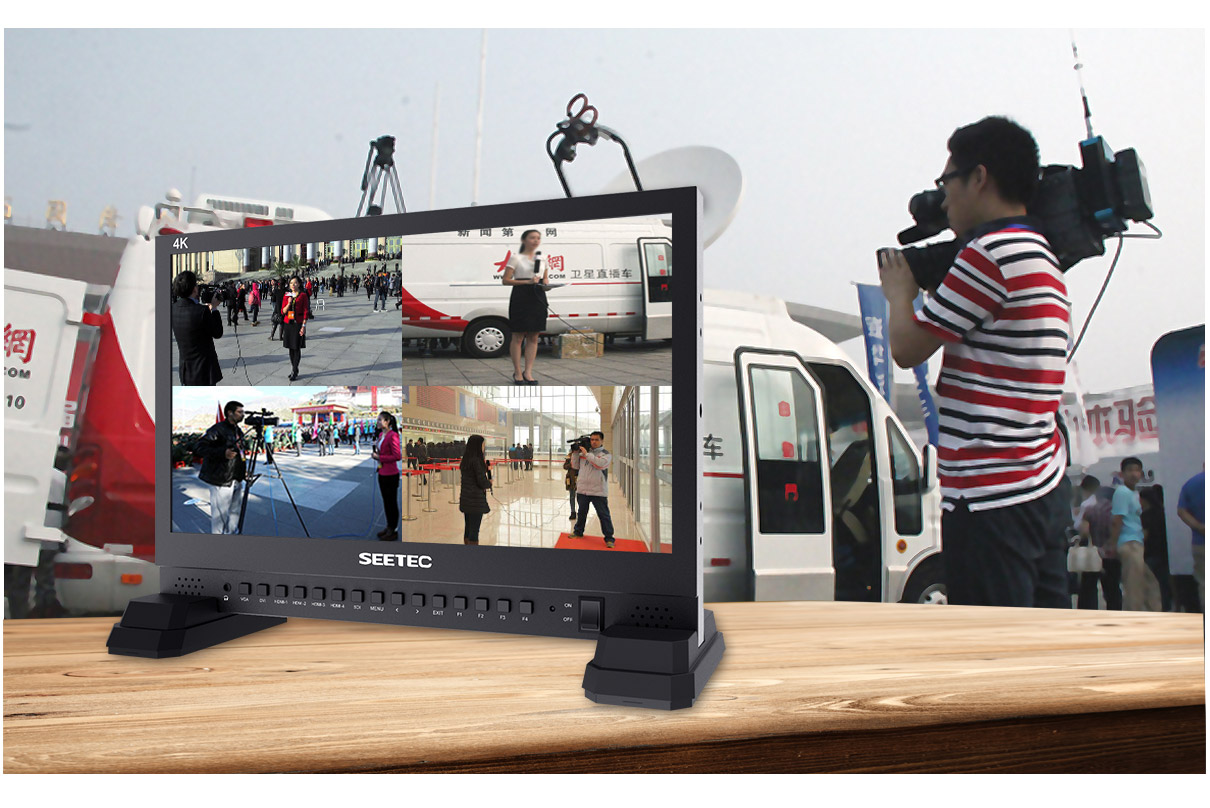

Live Production Broadcast Monitor
Turn any live event into a professional HD television program!
4K156-9HSD monitors are the affordable way to create incredible HD programs immediately from live events! It's perfect for broadcasters, professional sports, concerts, seminars and other scenes. They can meet you get perfect multi camera monitoring in any location!
Turn any live event into a professional HD television program!
4K156-9HSD monitors are the affordable way to create incredible HD programs immediately from live events! It's perfect for broadcasters, professional sports, concerts, seminars and other scenes. They can meet you get perfect multi camera monitoring in any location!
1. Wide view angle, 4K resolution (3840 x 2160), bright, colorful display
2. HDMIX4, 3G-SDI, DVI, VGA, Audio(L/R) inputs and 3G-SDI loop-through output
3. Special Features:
* Quad Split Display (1P, 2P LR, 2P TB, 2P PIP, 4P)
* Peaking Focus Assist
* False Color
* Image Flip (0°, 90°, 180°, 270°)
* Check Field (Red, Green, Blue, Mono)
* Image Freeze
* Zoom
* pixel to Pixel
* Center Marker
* Screen Marker (80%, 85%, 90%, 93%, 96%)
* Line Color (Red, Green, Blue, White)
* Quad Split Display (1P, 2P LR, 2P TB, 2P PIP, 4P)
* Peaking Focus Assist
* False Color
* Image Flip (0°, 90°, 180°, 270°)
* Check Field (Red, Green, Blue, Mono)
* Image Freeze
* Zoom
* pixel to Pixel
* Center Marker
* Screen Marker (80%, 85%, 90%, 93%, 96%)
* Line Color (Red, Green, Blue, White)
4. Monitoring via front panel 3.5mm stereo headphone jack and built-in speaker
5. Built-in LED tally indicators (Red, Green, Yellow)
-

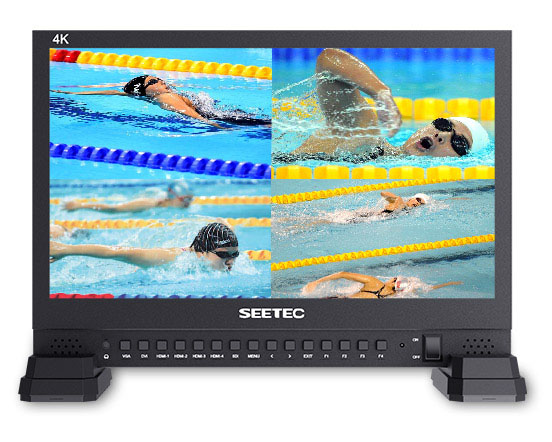

Quad View
Support 4x 4K HDMI, 3G-SDI, VGA, DVI input
Dual View
Meet your different screen display needs.
Input Swap
To exchange the input signal of the split screen.
Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. It's shows white highlight over parts of the image in focus.
Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.
Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling. This feature is essential for capturing optimum detail.

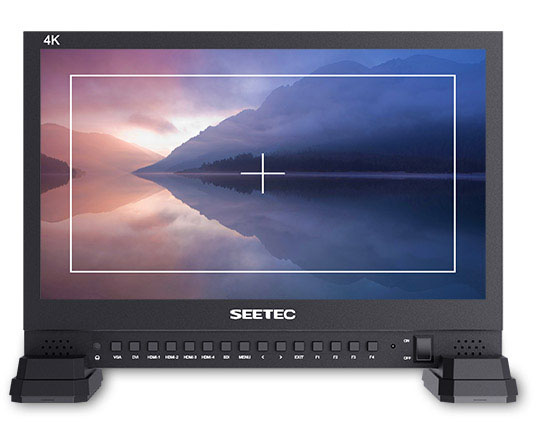

Center Marker & Safe Marker
Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%, 2.35:1). You can switch the Mark color between Red, Green, Blue and White according to different tone of the subject.
Image Flip
The 90°, 180°, 270°of the image around flip.
Display Spec.
| Model | 4K156-9HSD |
| Screen Size | 15.6" IPS |
| Color Depth | 16.7M colors (8-bits) |
| Resolution | 3840×2160 pixels |
| Pixel Pitch | 0.0897 x 0.0897 mm |
| Aspect Ratio | 16:9 |
| Brightness | 300cd/m² |
| Contrast Ratio | 800:1 |
| Backlight | LED |
| Viewing Angle | 85°/85°(L/R) 85°/85°(U/D) |
Input
| 4 X HDMI | HDMI (HDMI2.0x1 support 4K 60HZ; HDMI1.4x3 support 4K 30HZ) |
| 1 X BNC | SDI |
| 1 X DVI | DVI |
| 1 X VGA | VGA |
| 2 X RCA | Audio(L/R) |
| 1 X DB-9 | Tally |
Output
| 1 X BNC | SDI |
Audio
| Audio Out | Headphone, Speaker |
SDI Support Format
| 720p(60/59.94/50/30/29/25/24/23.98) |
| 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
HDMI Support Format
| HDMI 2.0: 4K UHD 2160p (23.98/24/25/29.97/30/50/59.94/60) |
| HDMI 1.4: 4K UHD 2160p (23.98/24/25/29.97/30) |
| 480p/576p |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
General
| Input Voltage | DC12～24V (XLR) |
| Power Consumption | ≤18W |
| Working Temperature | -10°C~50°C |
| Storage Temperature | -20°C~60°C |
| Unit Size (mm) | 372L×262H×28.5D (mm) (Without Bracket) |
| Unit Weight | 2.03kg (Without Bracket) |
| Outer Carton Qty | 2 |
| Outer Carton Size | 417*332*477 (mm) |
| Gross Weight | 7.6kgs |
Advanced Features
| * Quad Split Display (1P, 2P LR, 2P TB, 2P PIP, 4P) |
| * Peaking Focus Assist |
| * False Color |
| * Overscan |
| * Display Rotate (0°, 90°, 180°, 270°) |
| * Check Field (Red, Green, Blue, Mono) |
| * Image Freeze |
| * Zoom |
| * Pixel to Pixel |
| * Center Marker |
| * Screen Marker (80%, 85%, 90%, 93%, 96%, 2.35:1) |
| * Line Color (Red, Green, Blue, White） |
| * Color Temperature Adjustment |
| * Built-in LED tally indicators (Red, Green, Yellow) |

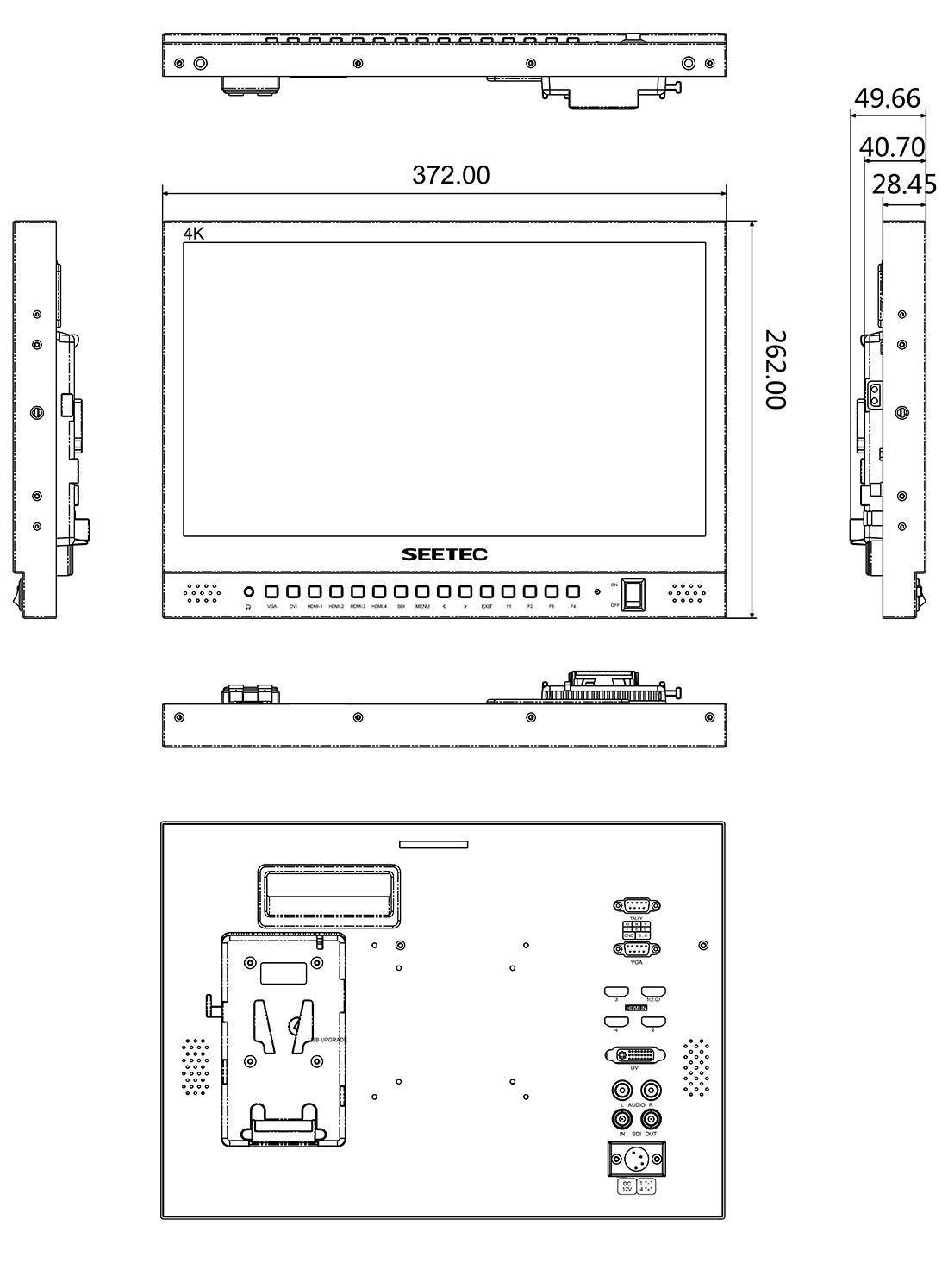

Dimensions (Unit: mm)
Turn any event into a broadcast quality television program!
Whether you're a broadcaster or even a student, educator, videographer or web broadcaster, 4K156-9HSD is perfect for creating broadcast quality programs from live events. You get both HDMI and SDI connections so it works with everything from consumer cameras, computers and video game consoles, all the way up to high end broadcast cameras! Simply plug in your cameras, a display and your laptop running the software control panel!
Whether you're a broadcaster or even a student, educator, videographer or web broadcaster, 4K156-9HSD is perfect for creating broadcast quality programs from live events. You get both HDMI and SDI connections so it works with everything from consumer cameras, computers and video game consoles, all the way up to high end broadcast cameras! Simply plug in your cameras, a display and your laptop running the software control panel!
Turn any event into a broadcast quality television program!
Whether you're a broadcaster or even a student, educator, videographer or web broadcaster, 4K156-9HSD is perfect for creating broadcast quality programs from live events. You get both HDMI and SDI connections so it works with everything from consumer cameras, computers and video game consoles, all the way up to high end broadcast cameras! Simply plug in your cameras, a display and your laptop running the software control panel!
Whether you're a broadcaster or even a student, educator, videographer or web broadcaster, 4K156-9HSD is perfect for creating broadcast quality programs from live events. You get both HDMI and SDI connections so it works with everything from consumer cameras, computers and video game consoles, all the way up to high end broadcast cameras! Simply plug in your cameras, a display and your laptop running the software control panel!
Broadcast
When you're working on a multi camera studio production, you need to see all of your sources, graphics, keys and program displays at the same time. 4K156-9HSD lets you see everything no matter what the video standard! The amazing clarity of the Ultra HD resolution screen means you can easily check focus and watch for color consistency across all of your cameras! It's ideal for live sport, studio shows and more!
When you're working on a multi camera studio production, you need to see all of your sources, graphics, keys and program displays at the same time. 4K156-9HSD lets you see everything no matter what the video standard! The amazing clarity of the Ultra HD resolution screen means you can easily check focus and watch for color consistency across all of your cameras! It's ideal for live sport, studio shows and more!

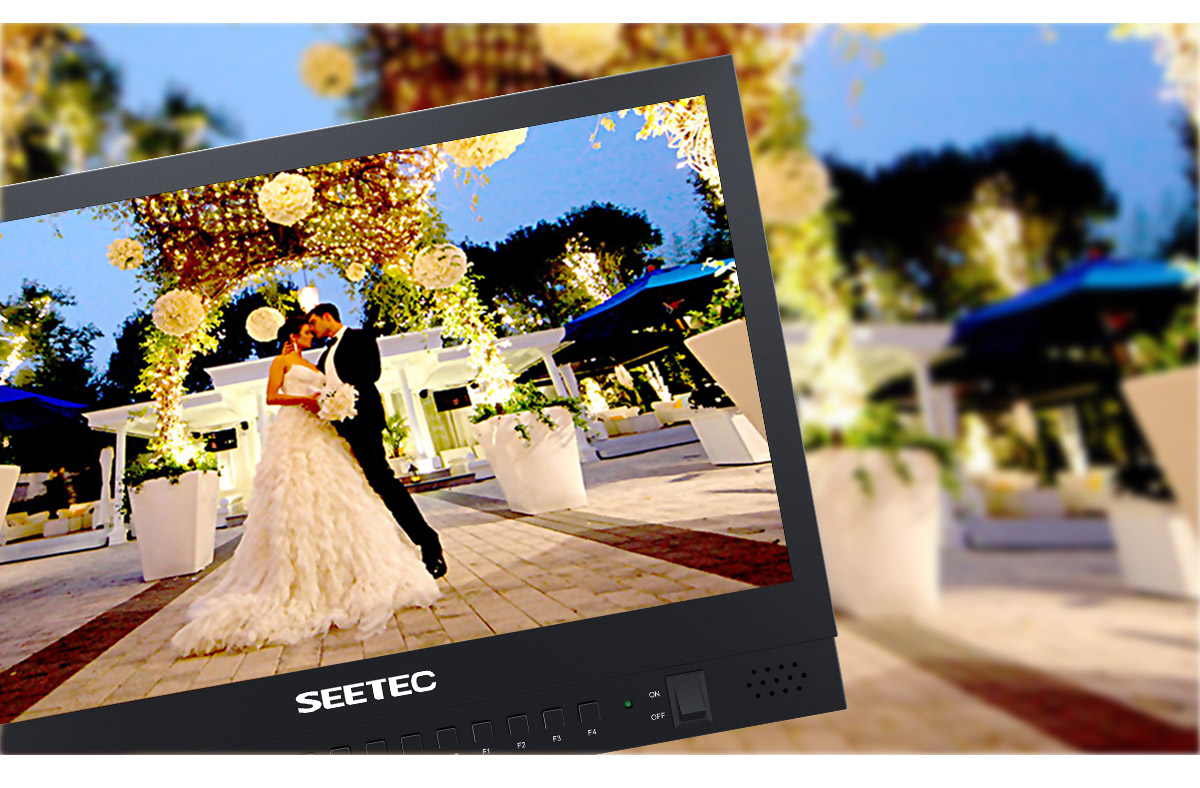

Live Weddings
Create beautiful wedding programs!
Create beautiful wedding programs!
Conferences and Seminars
Instantly switch between a camera on the speaker and their computer with slides. You can add picture in picture effects!
Instantly switch between a camera on the speaker and their computer with slides. You can add picture in picture effects!

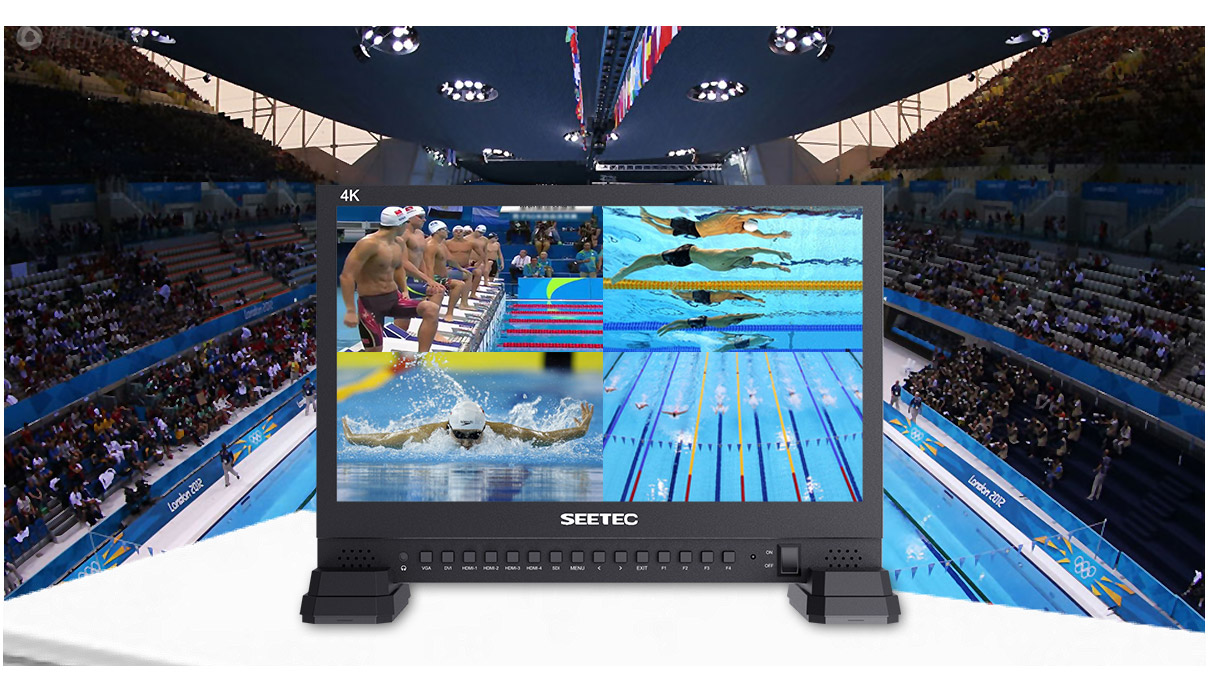

Live Sports
It's now easier to set up multiple cameras around a field to create live switched broadcast quality HD programming! Add custom team graphics or even have sportscasters stand in front of a green screen and key them onto a virtual set!
It's now easier to set up multiple cameras around a field to create live switched broadcast quality HD programming! Add custom team graphics or even have sportscasters stand in front of a green screen and key them onto a virtual set!

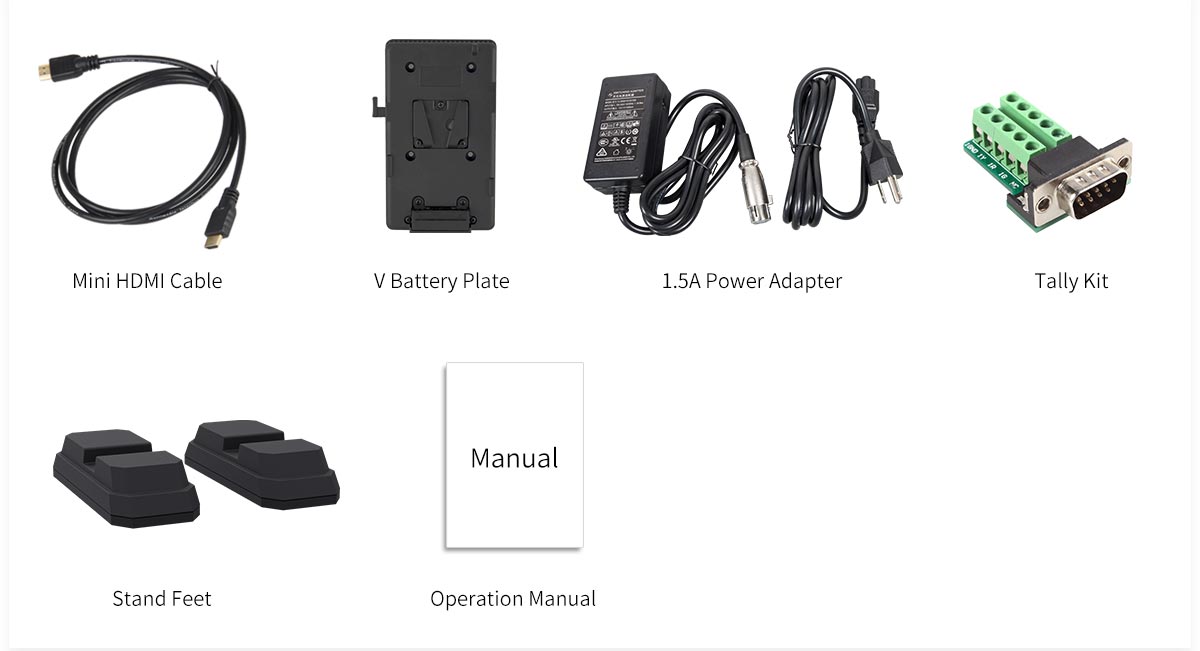

Standard Package Includes:
1× Mini HDMI Cable
1× V-mount Battery Plate
1× 1.5A Power Adapter
1× Tally Kit
2× Stand Feet
1× Operation Manual
1× Mini HDMI Cable
1× V-mount Battery Plate
1× 1.5A Power Adapter
1× Tally Kit
2× Stand Feet
1× Operation Manual
