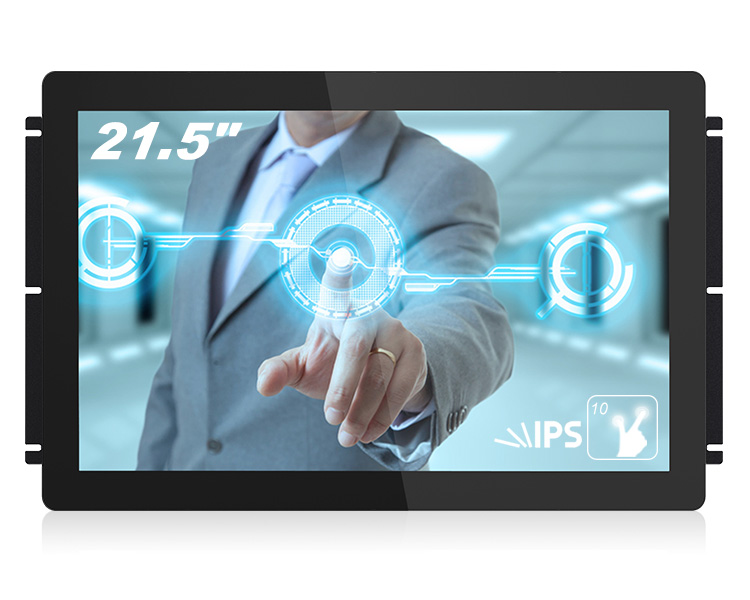

21.5" IPS 1920x1080 Projected Capacitive 10-Point Touch LCD Open Frame Monitor PF215-9CT
Model：PF215-9CT
Introduction
Screen Size： 21.5" IPS
Resolution： 1920x1080 pixels
Aspect ratio： 16:9
Brightness： 250cd/m2
Input
HDMI, YPbPr, Video, Audio, DVI, VGA, USB for Touch
Output
Stereo Headphone, Speaker(built-in)
DM
Shop/2017/11/PF(101,133,173,215)-Specification.jpg
Download
正在提交中....
Contact Us
OVERVIEW
FEATURES
SPECIFICATIONS
VIDEO
APPLICATION
ACCESSORIES

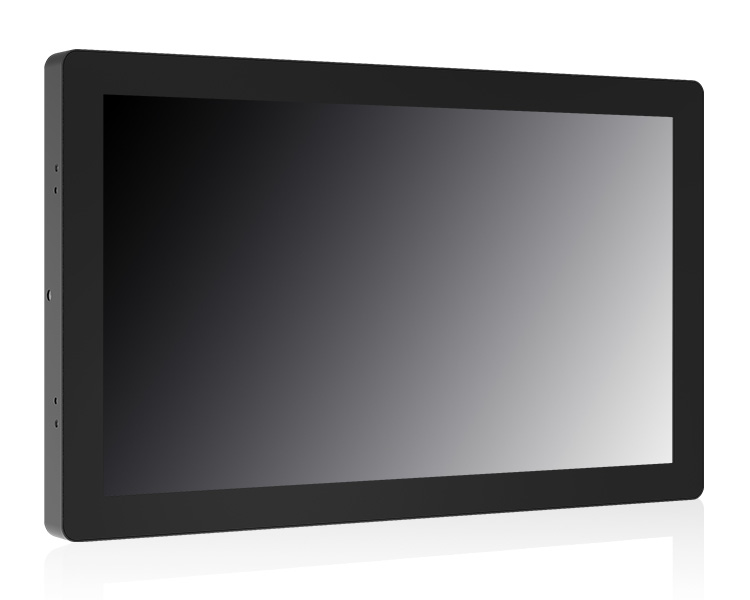

SEETEC industrial capacitive touchscreen monitor with rugged metal frame, flat LCD panel design, compact structure, durable, with impact resistance, anti-interference, heat dissipation and other advantages, meeting the embedded or external installation needs simultaneously. Its several top features along with superior engineering make these open frame monitors as ideal solutions for high quality displays.
The capacitive touch screen is equipped with 10 point touch, fast, accurate and smooth touch experience. It is widely used in industrial display, medical display, commercial LCD display, financial equipment, self-service terminal.
The capacitive touch screen is equipped with 10 point touch, fast, accurate and smooth touch experience. It is widely used in industrial display, medical display, commercial LCD display, financial equipment, self-service terminal.
Industrial Display Solution

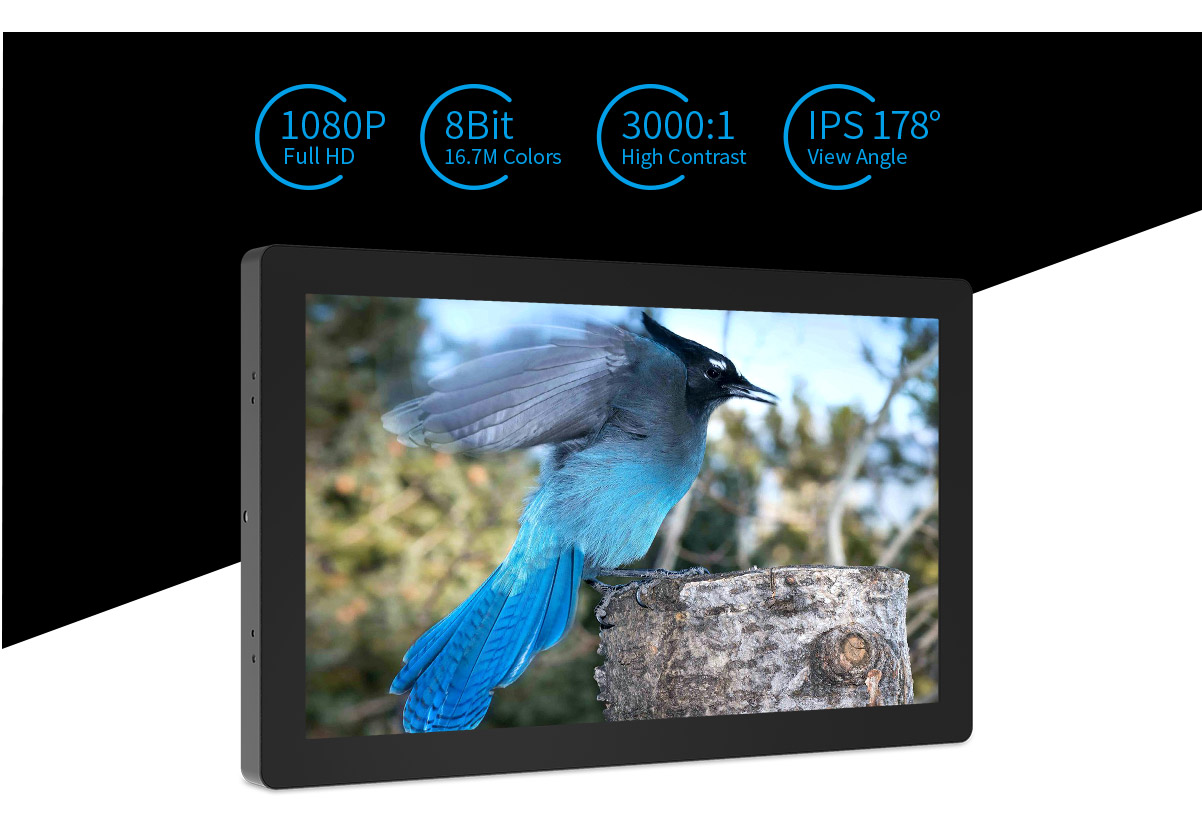

1920x1080 see every pixel in detail
Industrial high-definition LCD screen, 1920x1080 Full HD resolution, the image is clear and natural; at the same time with low power consumption, long-time operation ability, can adapt to almost all of harsh environment.
1920x1080 see every pixel in detail
Industrial high-definition LCD screen, 1920x1080 Full HD resolution, the image is clear and natural; at the same time with low power consumption, long-time operation ability, can adapt to almost all of harsh environment.
IPS 178° Wider View Angle
High Quality: no brightened dot, no streaking
178° Wider View Angle: enjoy consistent images from any perspective More Precise Color Restoration: wide color gamut LCD panel ensure the monitor more precise color restoration exquisite picture quality more rich color levels.
High Quality: no brightened dot, no streaking
178° Wider View Angle: enjoy consistent images from any perspective More Precise Color Restoration: wide color gamut LCD panel ensure the monitor more precise color restoration exquisite picture quality more rich color levels.

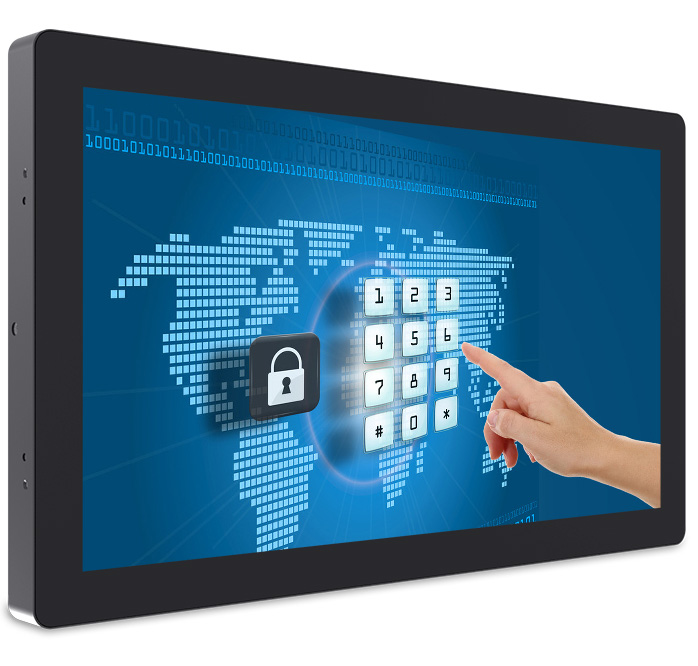

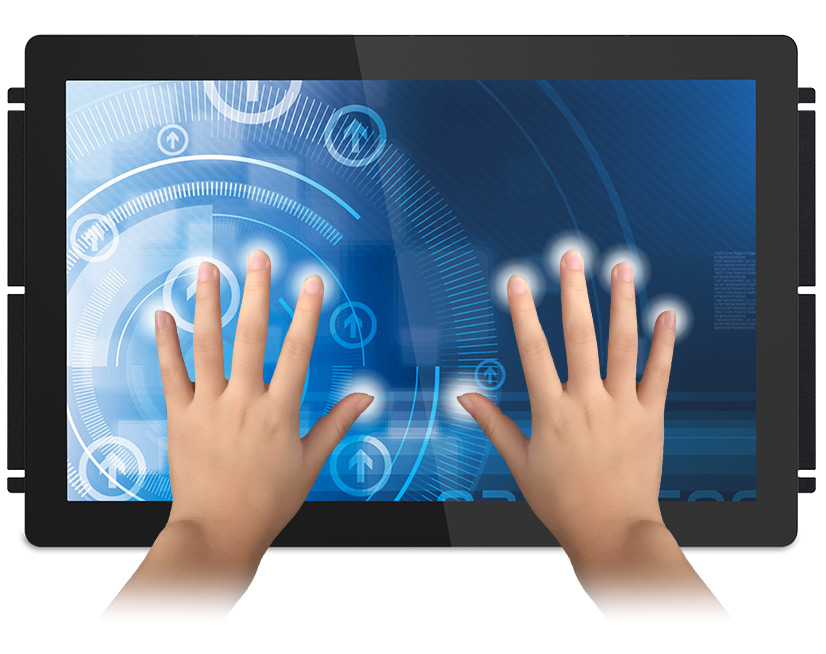

10-point Capacitive Touchscreen
Faster, more accurate, more stable touch experience
SEETEC using the 10 point projected capacitive touch technology, the glass surface smooth touch, give you an impeccable fast touch experience.
Faster, more accurate, more stable touch experience
SEETEC using the 10 point projected capacitive touch technology, the glass surface smooth touch, give you an impeccable fast touch experience.
Accurate Touch Screen
Use ultra-sensitive touch screen
Only need one time calibration to improves touch accuracy, no dead end touch, no break, drift, when you write on it, you can hardly feel any delay or deviation.
Use ultra-sensitive touch screen
Only need one time calibration to improves touch accuracy, no dead end touch, no break, drift, when you write on it, you can hardly feel any delay or deviation.
Compatible System
Support Windows 7 / Windows 8 / Windows 10 / Android operating systems, greatly enhanced the versatility of the terminal, for industrial, medical, hotel, and other industry display, meet the interactive touch demand.
Support Windows 7 / Windows 8 / Windows 10 / Android operating systems, greatly enhanced the versatility of the terminal, for industrial, medical, hotel, and other industry display, meet the interactive touch demand.
-

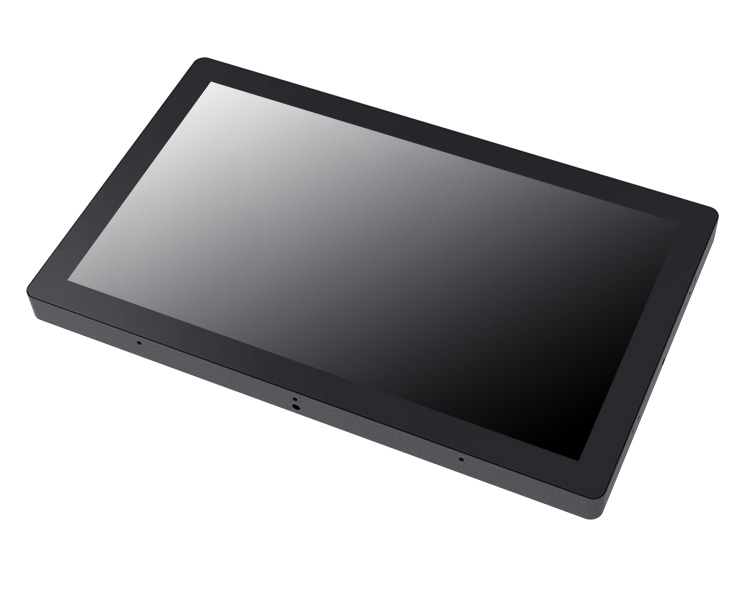

Flat Panel
Smoother and faster
Interactive touch display, flat slim design, coupled with circular streamline shape, no sharp edges, ergonomic design, simple and elegant.

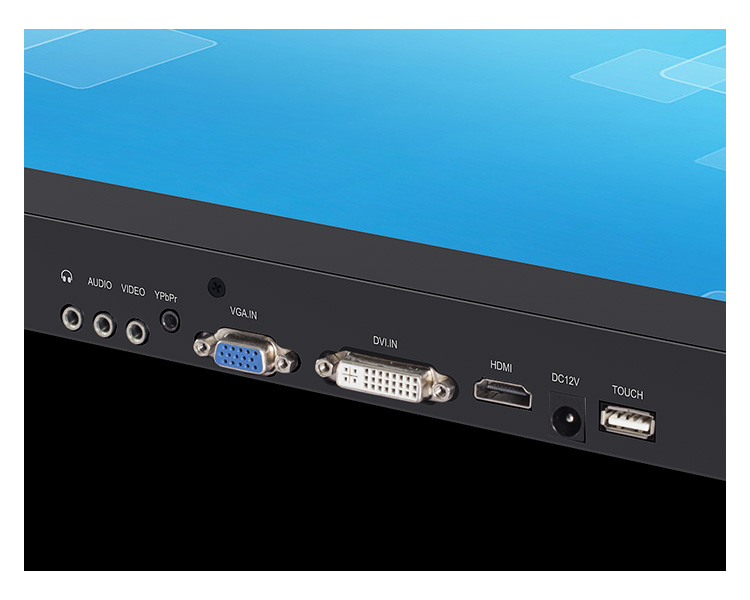

Rich Interfaces
Meet the industrial display application needs
Not only equipped with USB (for touch), DC12V power, HDMI, VGA, YPbPr, VIDEO, AUDIO input interface, also equipped with 3.5mm stereo headphone output and speakers.
Meet the industrial display application needs
Not only equipped with USB (for touch), DC12V power, HDMI, VGA, YPbPr, VIDEO, AUDIO input interface, also equipped with 3.5mm stereo headphone output and speakers.

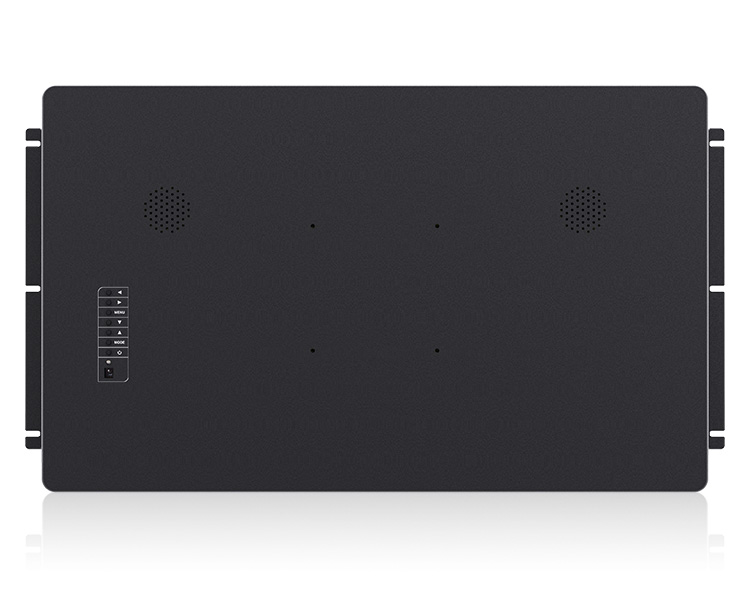

Flexible Installation
Support embedded, VESA wall-mounted and other installation methods, to facilitate the flexible display application, ideal solution for kiosk integrator and store retail. (The rack mount brackets can meet your embedded installation requirements, the standard VESA 100x100mm screw hole can support wall-mounted installation.)
Support embedded, VESA wall-mounted and other installation methods, to facilitate the flexible display application, ideal solution for kiosk integrator and store retail. (The rack mount brackets can meet your embedded installation requirements, the standard VESA 100x100mm screw hole can support wall-mounted installation.)

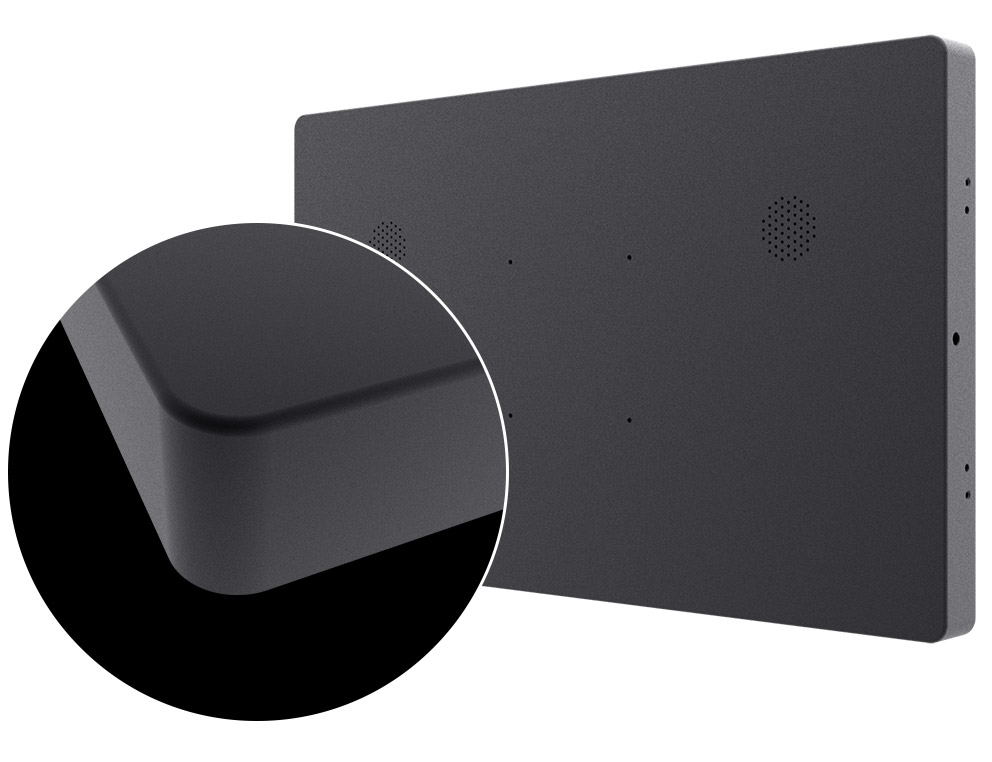

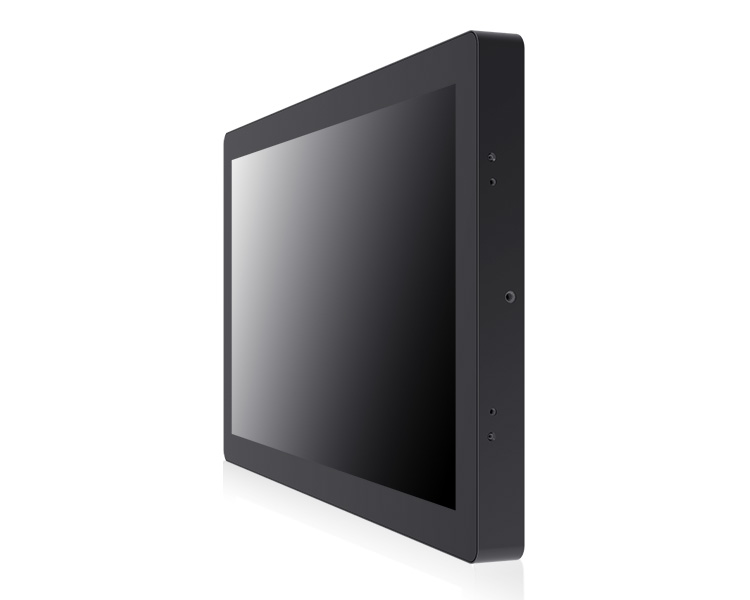

Industrial Grade Rugged Design
All metal shell, compact, durable, designed for all kinds of industrial needs, impact resistance, anti-interference, heat fast, to adapt to a variety of harsh working environment. Metal narrow frame design, rounded corners, exquisite design.
All metal shell, compact, durable, designed for all kinds of industrial needs, impact resistance, anti-interference, heat fast, to adapt to a variety of harsh working environment. Metal narrow frame design, rounded corners, exquisite design.
Application Solution
Widely used in industrial display, industrial control, medical equipment, military field, fire equipment, car display, video conferencing systems, entertainment and leisure, business self-help, financial institutions, query equipment and other fields, and also applies to harsh environments.
Widely used in industrial display, industrial control, medical equipment, military field, fire equipment, car display, video conferencing systems, entertainment and leisure, business self-help, financial institutions, query equipment and other fields, and also applies to harsh environments.
1. 21.5 inch Full HD (1920x1080) 250cd/ m²
2. IPS wide view angle and high-contrast screen for stunning colors
3. Projected capacitive 10-point Touch Screen
4. Full metal construction
5. HDMI, DVI, VGA, YPbPr, Video, Audio Signal Input

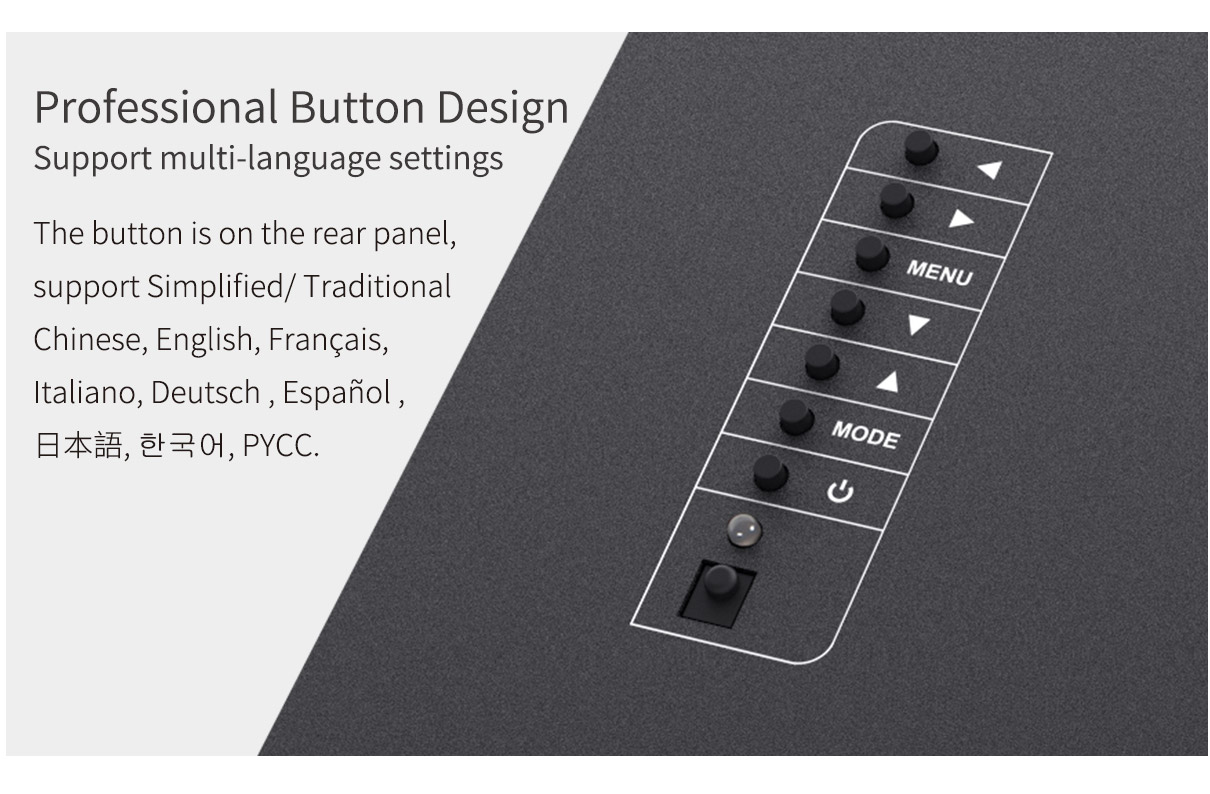

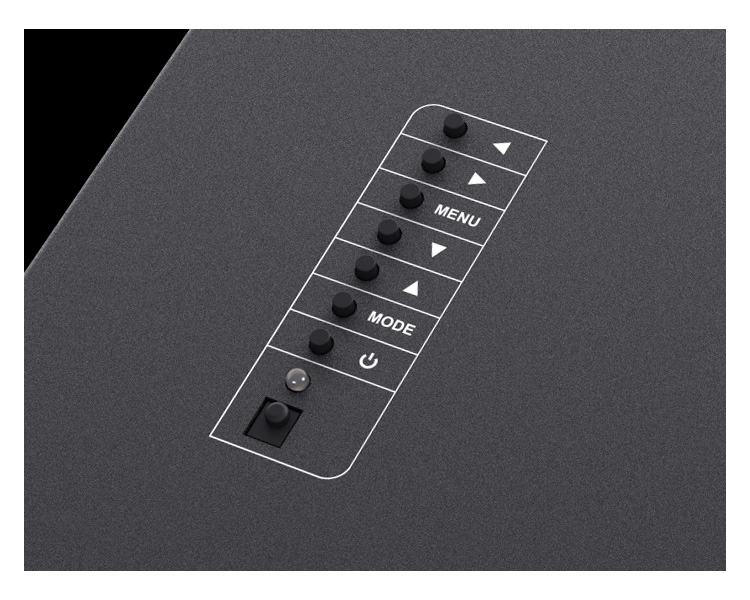

6. OSD control on the back cover
7. DC 12V Power Input
8. Rugged industry design
9. Support embedded rack mounted / VESA wall mounted
10. USB touch interface Support Windows 7/ 8/ 10 Compliant, Android OS system
2. IPS wide view angle and high-contrast screen for stunning colors
3. Projected capacitive 10-point Touch Screen
4. Full metal construction
5. HDMI, DVI, VGA, YPbPr, Video, Audio Signal Input
6. OSD control on the back cover
7. DC 12V Power Input
8. Rugged industry design
9. Support embedded rack mounted / VESA wall mounted
10. USB touch interface Support Windows 7/ 8/ 10 Compliant, Android OS system
Display Spec.
| Model | PF215-9CT |
| Touch Screen | Capacitive Touch |
| Touch Interface | USB |
| Multi-Touch Support | 10 Points |
| Screen Size | 21.5" IPS |
| Display Colors | 16.7M colors (RGB 8-bit) |
| Resolution | 1920×1080 pixels |
| Dot Pitch | 248.25×248.25 um |
| Aspect Ratio | 16:9 |
| Brightness | 250cd/m² |
| Contrast Ratio | 3000:1 |
| Backlight | LED |
| Viewing Angle | 89°/89°(L/R) 89°/89°(U/D) |
Interfaces
| HDMI, DVI, VGA, YPbPr, Video, Audio in, Audio out, USB for touch |
OS Support for Touch
| Window 7, Window 8, Window 10, Android |
Mounting Options
| VESA 4-hole 100mm mounting / Rack Mount |
General
| Input Voltage | DC12V |
| Power Consumption | ≤12W |
| Working Temperature | -10℃～50℃ |
| Storage Temperature | -20℃～60℃ |
| Unit Size | 536.40L×327.86H×33.30D (mm) |
| Unit Weight | 5.4kg |
Dimensions (Unit: mm)
Mainly Used in Closed-Circuit Surveillance Systems
Car Video, PC Operating Systems
Vehicle Navigation Systems Supporting Display
Can Also be Applied for Industrial Automation
Medical Machine Equipments
Electric Power
Petrification
Monitor
Navigation
POS, ATM and Instrumentation Display Systems
Car Video, PC Operating Systems
Vehicle Navigation Systems Supporting Display
Can Also be Applied for Industrial Automation
Medical Machine Equipments
Electric Power
Petrification
Monitor
Navigation
POS, ATM and Instrumentation Display Systems
Standard Accessories:
1× Power Adapter
1× VGA Cable
1× USB Touch Cable
1× Manual
1× Power Adapter
1× VGA Cable
1× USB Touch Cable
1× Manual
